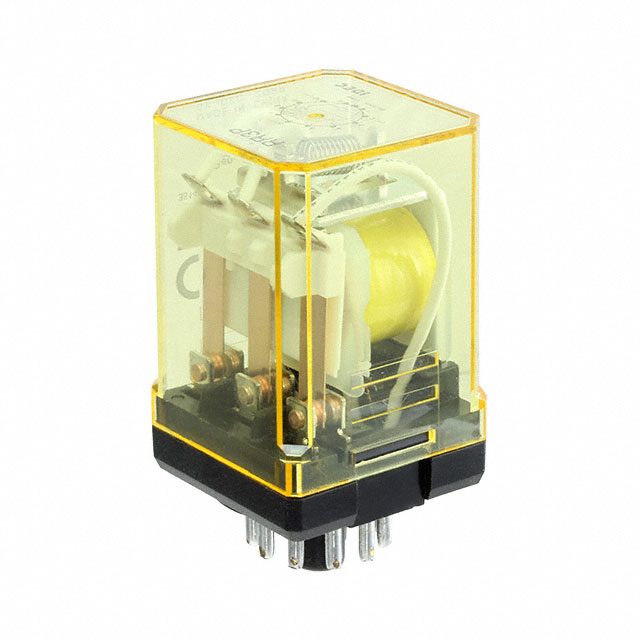

RR3P-UAC110V

Obsolete

IDEC

RELAY GEN PURPOSE 3PDT 10A 110V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RR3P-UAC110V

Obsolete

IDEC

RELAY GEN PURPOSE 3PDT 10A 110V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RR3P-UAC110V

Approval Agency	CSA, TUV, cURus, CE
Coil Current	23 mA
Coil Resistance	1.68 kOhms
Coil Type	Non Latching
Coil Voltage	110 VAC/DC
Contact Form	3PDT (3 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Load - Max Switching	300 W, 2400 VA
Mounting Type	Socketable
Must Operate Voltage	88 VAC/DC
Must Release Voltage	33 VAC
Operate Time	25 ms
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	25 ms
Switching Voltage	30 VDC, 240 VAC
Termination Style	Plug In, 11 Pin (Octal)

RR3P-U Series

Part	Must Release Voltage	Load - Max Switching	Termination Style	Contact Form	Switching Voltage	Contact Material	Coil Current	Mounting Type	Operate Time	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Coil Voltage	Release Time	Must Operate Voltage	Contact Rating (Current)	Coil Resistance	Coil Type	Approval Agency	Features
IDEC RR3P-UDC48V	4.8 VDC	300 W 2400 VA	Plug In 11 Pin (Octal)	3PDT (3 Form C)	30 VDC 240 VAC	Silver (Ag)	30 mA	Socketable	25 ms	-25 °C	40 °C	General Purpose	48 VDC	25 ms	38.4 VDC	10 A	1.6 kOhms	Non Latching	CE CSA cURus TUV
IDEC RR3P-UAC120V	36 VAC	300 W 2400 VA	Plug In 11 Pin (Octal)	3PDT (3 Form C)	30 VDC 240 VAC	Silver (Ag)	20.5 mA	Socketable	25 ms	-25 °C	40 °C	General Purpose	120 VAC	25 ms	96 VAC	10 A	2.1 kOhms	Non Latching	CE CSA cURus TUV
IDEC RR3P-ULAC24V	7.2 VAC	300 W 2400 VA	Plug In 11 Pin (Octal)	3PDT (3 Form C)	30 VDC 240 VAC	Silver (Ag)	105 mA	Socketable	25 ms	-25 °C	40 °C	General Purpose	24 VAC	25 ms	19.2 VAC	10 A	79 Ohms	Non Latching	CE CSA cURus TUV	Lighted Indicator
IDEC RR3P-UAC240V	72 VAC/DC	300 W 2400 VA	Plug In 11 Pin (Octal)	3PDT (3 Form C)	30 VDC 240 VAC	Silver (Ag)	10.5 mA	Socketable	25 ms	-25 °C	40 °C	General Purpose	240 VAC	25 ms	192 VAC	10 A	8.33 kOhms	Non Latching	CE CSA cURus TUV
IDEC RR3P-UAC110V	33 VAC	300 W 2400 VA	Plug In 11 Pin (Octal)	3PDT (3 Form C)	30 VDC 240 VAC	Silver (Ag)	23 mA	Socketable	25 ms	-25 °C	40 °C	General Purpose	110 VAC/DC	25 ms	88 VAC/DC	10 A	1.68 kOhms	Non Latching	CE CSA cURus TUV
IDEC RR3P-ULDC12V	1.2 VDC	300 W 2400 VA	Plug In 11 Pin (Octal)	3PDT (3 Form C)	30 VDC 240 VAC	Silver (Ag)	120 mA	Socketable	25 ms	-25 °C	40 °C	General Purpose	12 VDC	25 ms	9.6 VDC	10 A	100 Ohms	Non Latching	CE CSA cURus TUV	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RR3P-U Series

General Purpose Relay 3PDT (3 Form C) 110VAC Coil Socketable
