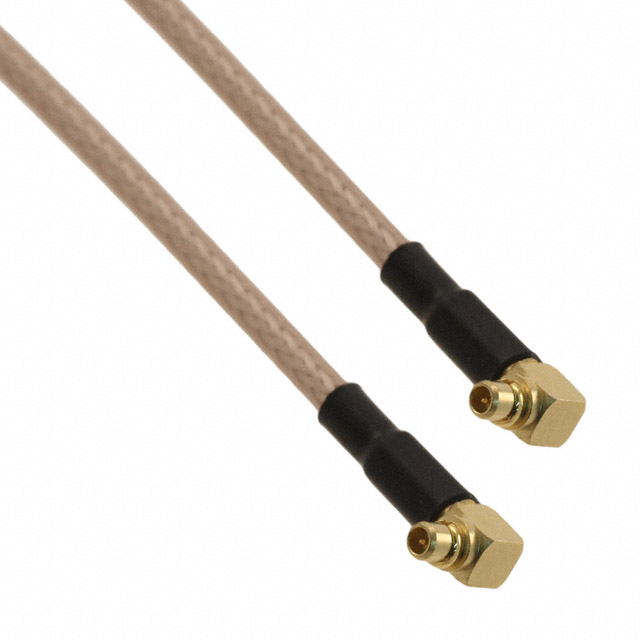

0897616790

Active

Molex

CBL ASSY MMCX PLUG TO PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0897616790

Active

Molex

CBL ASSY MMCX PLUG TO PLUG 6"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0897616790

1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	MMCX to MMCX

89761 Series

SSMCX Straight Plug to SSMCX Straight Plug on 1.32mm Cable, 150.0mm Length, 50 Ohms

Part	Color	Cable Impedance	Cable Type	2nd Contact Gender	2nd Connector	Style	Features	Length [x]	Length [x]	1st Connector Mounting Feature	Overall Impedance	2nd Connector Mounting Type	1st Connector Mounting Type	1st Contact Gender	1st Connector	Length	Length	Length [x]
Molex 0897616802	Copper	50 Ohms	RG-178	Male	MMCX Plug	SMA to MMCX	Shielded	457.2 mm	457.2 mm	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	SMA Jack
Molex 0897616800	Copper	50 Ohms	RG-178	Male	MMCX Plug	SMA to MMCX	Shielded			Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	SMA Jack	152.4 mm	6 in
Molex 0897616772	Copper	50 Ohms	RG-316	Male	MCX Plug Right Angle	SMA to MMCX	Shielded	457.2 mm	457.2 mm	Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	SMA Jack
Molex 0897616791	Copper	50 Ohms	RG-316	Male	MMCX Plug Right Angle	MMCX to MMCX					50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male		304.8 mm	12 "
Molex 0897616760	Copper	50 Ohms	RG-316	Male	MCX Plug	MCX to MCX					50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	MCX Plug	152.4 mm	6 in
Molex 0897616821	Copper	50 Ohms	RG-316	Male	MMCX Plug Right Angle	SMA to MMCX	Shielded			Bulkhead - Front Side Nut	50 Ohms	Free Hanging (In-Line)	Panel Mount	Female	SMA Jack	304.8 mm	12 "
Molex 0897616134	Copper	50 Ohms	RG-316	Male	MCX Plug Right Angle	MCX to MCX					50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	MCX Plug Right Angle	304.8 mm	12 "
Molex 0897611760	Black		1.32mm OD Coaxial Cable	Male	SSMCX Plug	SSMCX to SSMCX			150 mm		50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	SSMCX Plug			5.906 "
Molex 0897616790	Copper	50 Ohms	RG-316	Male	MMCX Plug Right Angle	MMCX to MMCX					50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male		152.4 mm	6 in
Molex 0897616761	Copper	50 Ohms	RG-316	Male	MCX Plug	MCX to MCX					50 Ohms	Free Hanging (In-Line)	Free Hanging (In-Line)	Male	MCX Plug	304.8 mm	12 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 19.70
		10	$ 15.57
		25	$ 14.35
		50	$ 13.55
		100	$ 12.84
		250	$ 12.04
		500	$ 11.52

Description

General part information

89761 Series

SSMCX Straight Plug to SSMCX Straight Plug on 1.32mm Cable, 150.0mm Length, 50 Ohms
