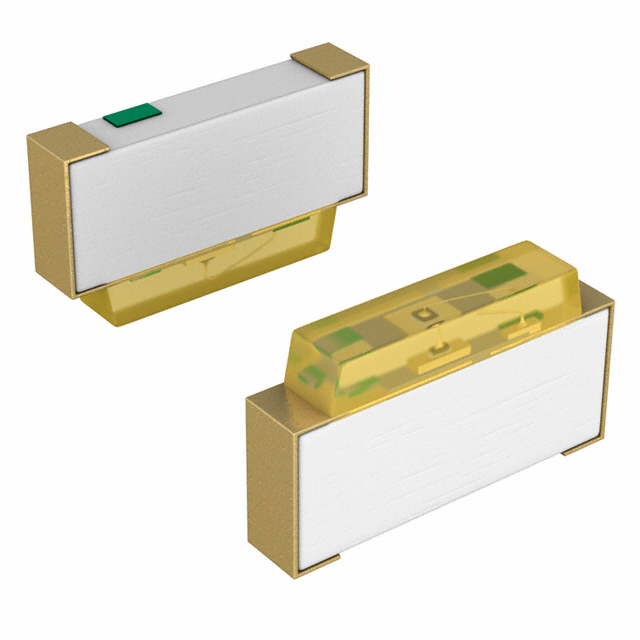

SMLF13WBDW11
ObsoleteRohm Semiconductor
LED WHITE DIFFUSED 1810 SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMLF13WBDW11
ObsoleteRohm Semiconductor
LED WHITE DIFFUSED 1810 SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMLF13WBDW11 |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 0.4 mm |
| Lens Color | White |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 0.35 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 90 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 0704 (1810 Metric) |
| Size / Dimension [x] | 1.8 mm |
| Size / Dimension [y] | 1 mm |
| Supplier Device Package | 0704 |
| Supplier Device Package | 1810 |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMLF13 Series
White LED Indication - Discrete 2.9V 0704 (1810 Metric)
