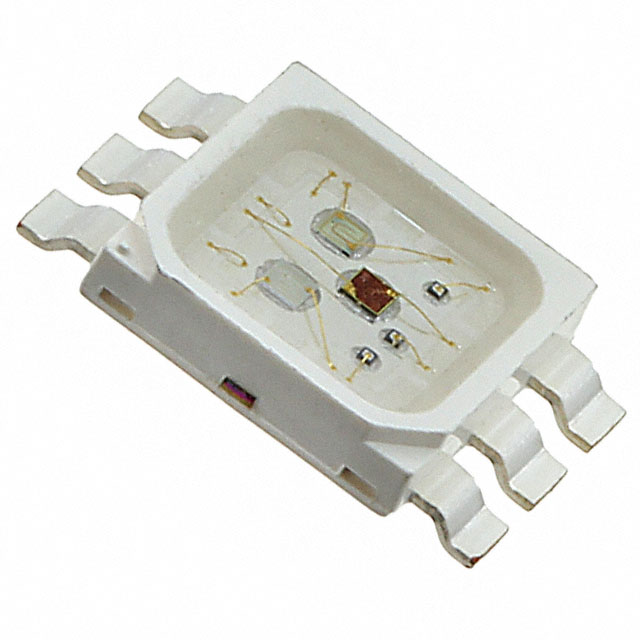

SML-LX5050SIUPGUBC

Active

Lumex Opto/Components Inc.

LED RGB CLEAR 6PLCC SMD

Deep-Dive with AI

Search across all available documentation for this part.

SML-LX5050SIUPGUBC

Active

Lumex Opto/Components Inc.

LED RGB CLEAR 6PLCC SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LX5050SIUPGUBC

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	150 mA
Current - Test [custom]	150 mA
Current - Test [custom]	150 mA
Height (Max) [Max] [z]	1.3 mm
Lens Color	Colorless
Lens Size	4.25 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	6300 mcd
Millicandela Rating [custom]	3200 mcd
Millicandela Rating [custom]	1500 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, Gull Wing
Size / Dimension [x]	5 mm
Size / Dimension [y]	5 mm
Supplier Device Package	6-PLCC
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ) [custom]	3.5 V
Voltage - Forward (Vf) (Typ) [custom]	2.5 V
Voltage - Forward (Vf) (Typ) [custom]	3.5 V
Wavelength - Peak [custom]	470 nm
Wavelength - Peak [custom]	525 nm
Wavelength - Peak [custom]	636 nm

SML-LX5050 Series

Part	Viewing Angle	Package / Case	Configuration	Lens Transparency	Lens Size [diameter]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Lens Color	Color	Millicandela Rating	Height (Max) [Max] [z]	Current - Test	Supplier Device Package	Wavelength - Peak	Lens Style	Lens Size	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]
Lumex Opto/Components Inc. SML-LX5050UPGC-TR	120 °	6-SMD J-Lead	Standard	Clear	4.4 mm	Surface Mount	5 mm	5 mm	3.4 V	Colorless	Green	800 mcd	1.8 mm	20 mA	6-PLCC	525 nm
Lumex Opto/Components Inc. SML-LX5050SUGC-TR	120 °	6-SMD J-Lead	Standard	Clear	4.4 mm	Surface Mount	5 mm	5 mm	2 V	Colorless	Green	80 mcd	1.8 mm	20 mA	6-PLCC
Lumex Opto/Components Inc. SML-LX5050SYC-TR	120 °	6-SMD J-Lead	Standard	Clear	4.4 mm	Surface Mount	5 mm	5 mm	2.5 V	Colorless	Yellow	1350 mcd	1.8 mm	50 mA	6-PLCC	590 nm
Lumex Opto/Components Inc. SML-LX5050SOC-TR	120 °	6-SMD J-Lead	Standard	Clear	4.4 mm	Surface Mount	5 mm	5 mm	2.3 V	Colorless		1650 mcd	1.8 mm	50 mA	6-PLCC
Lumex Opto/Components Inc. SML-LX5050SIC-TR	120 °	6-SMD J-Lead	Standard	Clear	4.4 mm	Surface Mount	5 mm	5 mm	2 V	Colorless	Red	85 mcd	1.8 mm	20 mA	6-PLCC	636 nm
Lumex Opto/Components Inc. SML-LX5050SIUPGUBC	120 °	6-SMD Gull Wing	Common Anode	Clear		Surface Mount	5 mm	5 mm		Colorless	Blue Green Red		1.3 mm		6-PLCC		Square with Flat Top	4.25 mm	470 nm	525 nm	636 nm	6300 mcd	3200 mcd	1500 mcd	150 mA	150 mA	150 mA	3.5 V	2.5 V	3.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	5000	$ 2.90

Description

General part information

SML-LX5050 Series

Red, Green, Blue (RGB) LED Indication - Discrete 2.5V Red, 3.5V Green, 3.5V Blue 6-SMD, Gull Wing

Documents

Technical documentation and resources

No documents available
