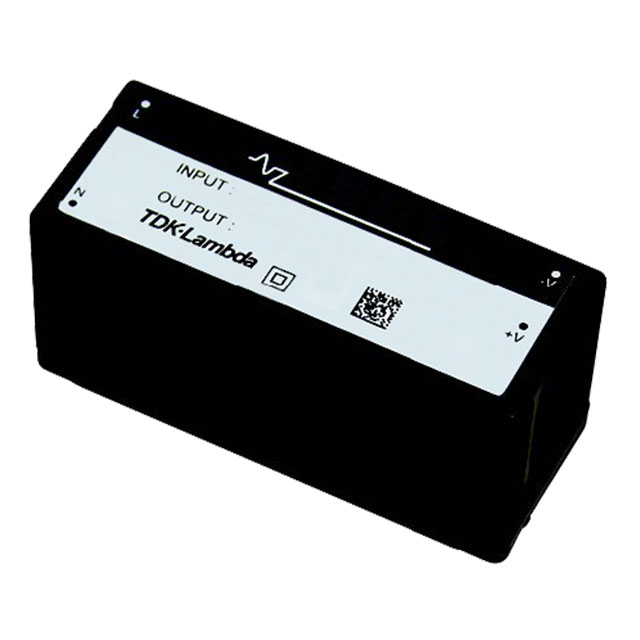

KWS25A-12
ActiveTDK-LAMBDA
AC/DC CONVERTER 12V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KWS25A-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 2.2 A |
| Efficiency | 86 % |
| Features | Universal Input |
| Line Regulation | 96 mV |
| Load Regulation | 48 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 63.5 mm |
| Size / Dimension [x] | 63.5 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 1.14 " |
| Size / Dimension [z] | 29 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 265 VAC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.98 | |
Description
General part information
KWS25A Series
Enclosed AC DC Converters 1 Output 12V 2.2A 85 ~ 265 VAC, 120 ~ 370 VDC Input
