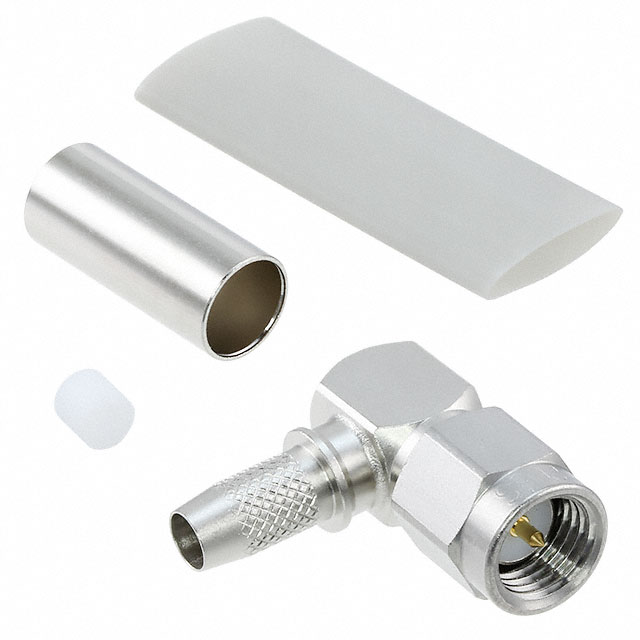

HRM-208S(40)

Active

Hirose Electric USA, Inc.

CONN SMA PLUG R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN SMA PLUG R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-208S(40)

Body Finish	Nickel
Body Material	Stainless Steel
Cable Group	142B, RG-55
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Heat Shrink, 2 pcs - 1 Connector
Insertion Loss	0.1 dB
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Crimp

Part	Connector Style	Mating Cycles	Body Finish	Dielectric Material	Cable Group	Frequency - Max [Max]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination	Body Material	Center Contact Material	Center Contact Plating	Housing Color	Insertion Loss	Mounting Type	Includes	Shield Termination	Number of Ports	Impedance
Hirose Electric USA, Inc. HRM-208S(41)
Hirose Electric USA, Inc. HRM-208S(40)	SMA	1000	Nickel	Polytetrafluoroethylene (PTFE)	142B RG-55	12.4 GHz	Male Pin Plug	85 °C	-40 °C	Solder	Stainless Steel	Brass	Gold	Silver	0.1 dB	Free Hanging (In-Line) Right Angle	1 Heat Shrink 2 pcs - 1 Connector	Crimp	1	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
