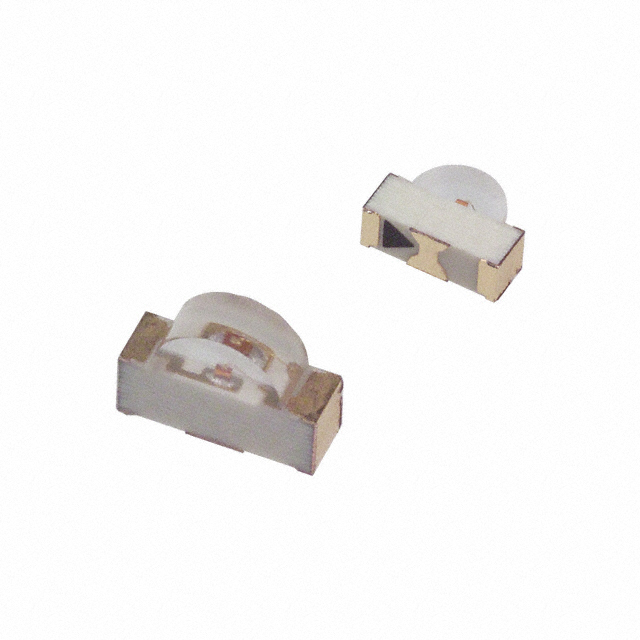

CMD12-21VGC/TR8
ActiveVisual Communications Company - VCC
LED GREEN CLEAR SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
CMD12-21VGC/TR8
ActiveVisual Communications Company - VCC
LED GREEN CLEAR SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD12-21VGC/TR8 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 8.8 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 2 mm |
| Supplier Device Package | SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Peak | 570 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.04 | |
| 10 | $ 0.64 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Digi-Reel® | 1 | $ 1.04 | ||
| 10 | $ 0.64 | |||
| 100 | $ 0.43 | |||
| 500 | $ 0.35 | |||
| 1000 | $ 0.33 | |||
| Tape & Reel (TR) | 2000 | $ 0.31 | ||
| 4000 | $ 0.29 | |||
| 6000 | $ 0.28 | |||
| 10000 | $ 0.27 | |||
| 14000 | $ 0.27 | |||
| 20000 | $ 0.26 | |||
Description
General part information
CMD12-21 Series
Green LED Indication - Discrete 2.1V 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
