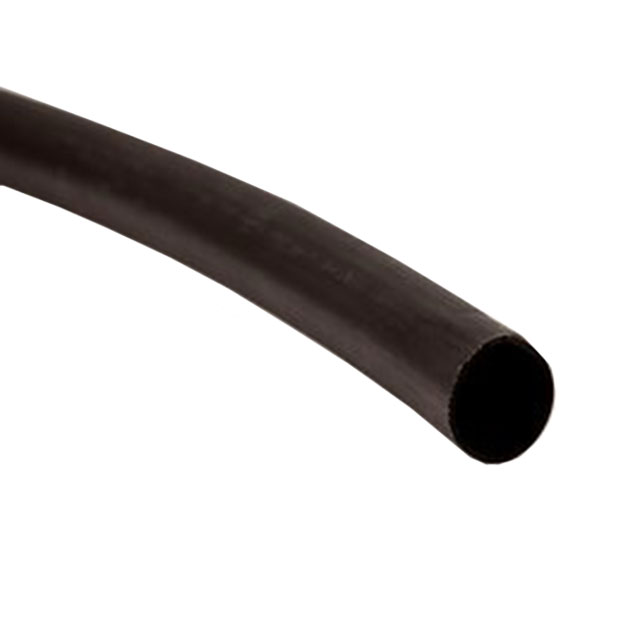

VTN-200-3/8-BLACK

Active

3M (TC)

HTSHRNK 3/8" BLACK FOOT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

VTN-200-3/8-BLACK

Active

3M (TC)

HTSHRNK 3/8" BLACK FOOT

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VTN-200-3/8-BLACK

Color	Black
Features	Self Extinguishing
Inner Diameter - Recovered [diameter]	4.75 mm
Inner Diameter - Recovered [diameter]	0.187 in
Inner Diameter - Supplied [diameter]	0.375 in
Inner Diameter - Supplied [diameter]	9.53 mm
Length	Enter Number of Feet in Order Quantity
Material	Fluoroelastomer (FKM)
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.89 mm
Recovered Wall Thickness	0.035 in
Shelf Life	60 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	175 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

VTN-200 Series

Part	Length	Length	Recovered Wall Thickness	Recovered Wall Thickness	Color	Shrink Temperature	Features	Operating Temperature [Min]	Operating Temperature [Max]	Material	Shrinkage Ratio	Shelf Life	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Type	Shelf Life Start	Length [x]	Length [x]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Length	Inner Diameter - Recovered	Inner Diameter - Recovered
3M (TC) VTN-200-3/4-BLACK 100	1.52 m 3.05 m 7.6 m 15.2 m	5 ' 10 ft 25 ft 50 ft	1.07 mm	0.042 in	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months	0.375 in	9.53 mm	27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture	30.5 m	100 ft
3M (TC) VTN-200-2-BLACK	15.2 m	50 ft	1.65 mm	0.065 in	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months	1 in	25.4 mm	27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture			50.8 mm	2 in
3M (TC) VTN-200-7/8-BLACK			1.24 mm	0.049 "	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months		0.437 "	27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture	30.5 m	100 ft	22.23 mm	0.875 in	11.1 mm
3M (TC) VTN200 5/8 BK SPL			1.07 mm	0.042 in	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months	0.313 in	7.95 mm	27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture	30.5 m	100 ft	15.88 mm	0.625 in
3M (TC) VTN-200-1/8-BLACK			0.76 mm		Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months	0.062 in	1.57 mm	27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture	61 m	200 ft	3.18 mm	0.125 "		0.03 "
3M (TC) VTN-200-1-BLACK	15.2 m	50 ft	1.24 mm	0.049 "	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months	0.5 in	12.7 mm	27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture			25.4 mm	1 in
3M (TC) VTN-200-3/8-BLACK			0.89 mm	0.035 in	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months	0.187 in	4.75 mm	27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture			9.53 mm	0.375 in			Enter Number of Feet in Order Quantity
3M (TC) VTN-200-3/16-BLACK			0.89 mm	0.035 in	Black	175 °C	Self Extinguishing	-55 °C	200 °C	Fluoroelastomer (FKM)	2 to 1	60 Months			27 °C 80 °F	10 °C	Tubing Flexible	Date of Manufacture	61 m	200 ft	4.75 mm	0.187 in				2.36 mm	0.093 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 19.49
		5	$ 16.41
		10	$ 14.87
		25	$ 13.85
		50	$ 13.33
		100	$ 13.02

Description

General part information

VTN-200 Series

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 2 to 1 Black Enter Number of Feet in Order Quantity

Documents

Technical documentation and resources

Heat Shrink Tubing and Devices Catalog

Datasheet
