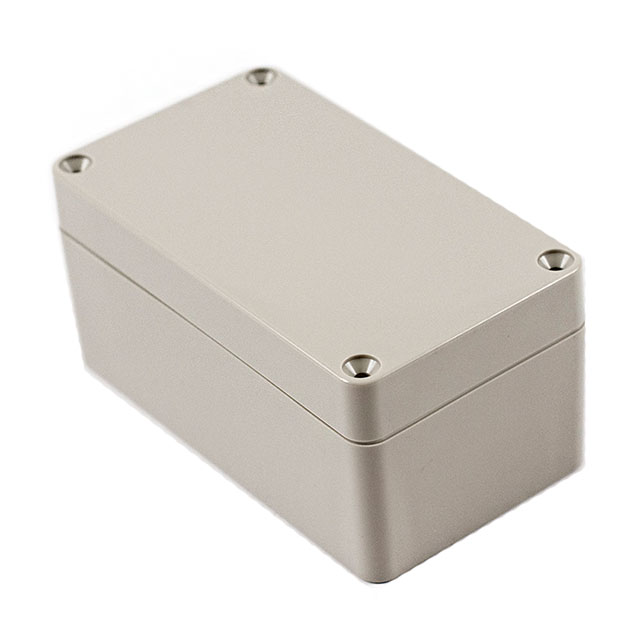

RZ0366C
ActiveHammond Manufacturing
ABS 3.23"L X 3.15"W
Deep-Dive with AI
Search across all available documentation for this part.
RZ0366C
ActiveHammond Manufacturing
ABS 3.23"L X 3.15"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RZ0366C |
|---|---|
| Design | Cover Included |
| Height [z] | 2.17 in |
| Height [z] | 55.12 mm |
| Material | ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP65 |
| Size / Dimension [x] | 82.04 mm |
| Size / Dimension [x] | 3.23 in |
| Size / Dimension [y] | 80.01 mm |
| Size / Dimension [y] | 3.15 in |
| Thickness | 0.12 in |
| Thickness | 3.05 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.75 | |
| 5 | $ 9.19 | |||
| 10 | $ 8.59 | |||
| 25 | $ 7.86 | |||
| 50 | $ 7.34 | |||
| 100 | $ 6.87 | |||
| 250 | $ 6.44 | |||
Description
General part information
RZ0366 Series
ABS Cover Included 3.230" L x 3.150" W (82.04mm x 80.01mm) X 2.170" (55.12mm)
Documents
Technical documentation and resources
No documents available
