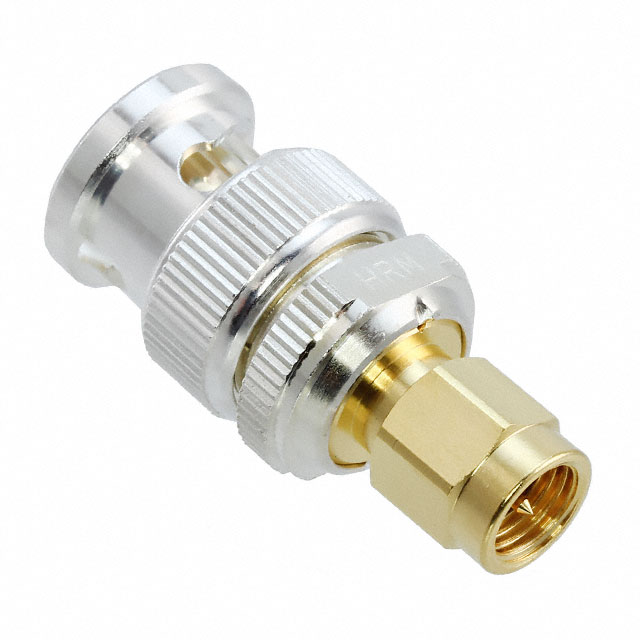

HRM-519(40)

Active

Hirose Electric USA, Inc.

COAX ADAPT BNC TO SMA

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

COAX ADAPT BNC TO SMA

Technical Specifications

Parameters and characteristics for this part

Specification	HRM-519(40)

Adapter Series	BNC to SMA
Adapter Type	Plug to Plug
Body Finish	Gold, Silver
Body Material	Brass, Stainless Steel
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	SMA Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	1000
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Mounting Type	Style	Adapter Series	Center Contact Material	Dielectric Material	Body Material	Fastening Type	Conversion Type	Convert From (Adapter End)	Center Gender	Adapter Type	Body Finish	Convert To (Adapter End)	Center Contact Plating	Frequency - Max [Max]	Impedance	Mating Cycles
Hirose Electric USA, Inc. HRM-519(40)	Free Hanging (In-Line)	Straight	BNC to SMA	Brass	Polytetrafluoroethylene (PTFE)	Brass Stainless Steel	Bayonet Lock Threaded	Between Series	BNC Plug Male Pin	Male to Male	Plug to Plug	Gold Silver	Male Pin SMA Plug	Gold	4 GHz	50 Ohms	1000

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To SMA Plug, Male Pin 50 Ohms
