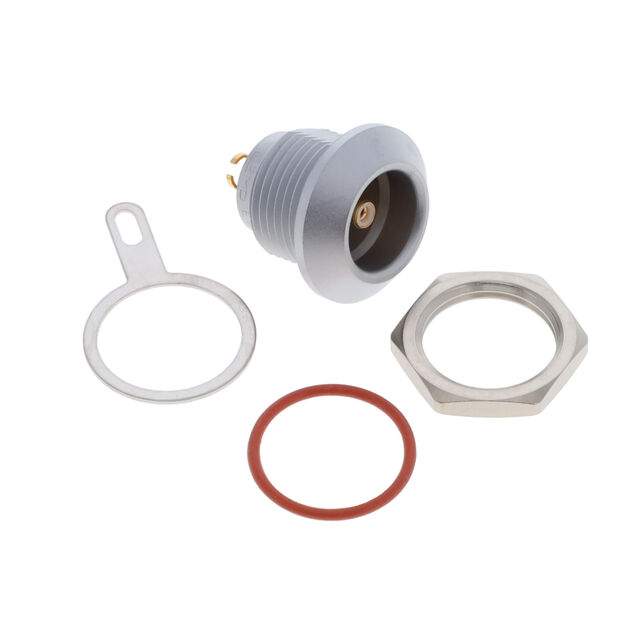

ERA.0E.650.CTL

Active

LEMO

CONN TRIAX RCPT STR 50OHM SOLDER

Search across all available documentation for this part.

Active

LEMO

CONN TRIAX RCPT STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	ERA.0E.650.CTL

Body Finish	Chrome
Body Material	Brass
Cable Group	178, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Triaxial
Connector Type	Receptacle, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP68 - Dust Tight, Waterproof
Mating Cycles	5000
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder

Part	Insert Material	Ingress Protection	Shell Size - Insert	Orientation	Number of Positions	Mounting Feature	Contact Material	Shell Material	Primary Material	Contact Finish - Mating	Material Flammability Rating	Color	Connector Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Shell Finish	Shield Termination	Body Finish	Cable Group	Number of Ports	Impedance	Contact Termination	Housing Color	Center Contact Material	Body Material	Dielectric Material	Mating Cycles	Center Contact Plating	Includes	Connector Style
LEMO ERA.0E.304.KLL	Polyetheretherketone (PEEK)	IP66/IP68	304	Keyed	4	Bulkhead - Rear Side Nut	Brass Bronze	Brass	Metal	Gold	UL94 V-0	Black	Female Sockets Male Pins Receptacle	Push-Pull	-55 °C	200 °C	Shielded	7 A
LEMO ERA.0E.303.CLL	Polyetheretherketone (PEEK)	IP66/IP68	303	Keyed		Bulkhead - Rear Side Nut	Brass Bronze	Brass	Metal	Gold	UL94 V-0	Silver	Female Sockets Male Pins Receptacle	Push-Pull	-55 °C	200 °C	Shielded	7 A	Chrome
LEMO ERA.0E.650.CTL		IP68 - Dust Tight Waterproof				Bulkhead - Rear Side Nut							Female Socket Receptacle	Push-Pull	-55 °C	200 °C				Solder	Chrome	178 RG-174	1	50 Ohms	Solder Cup	Silver	Beryllium Copper	Brass	Polytetrafluoroethylene (PTFE)	5000	Gold	1 Connector 1 Lockwasher 1 Nut	Triaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Triaxial Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
