APGF1011SEEPBVGC-TT

Obsolete

Kingbright

LED RGB CLEAR 4SMD

Search across all available documentation for this part.

Obsolete

Kingbright

LED RGB CLEAR 4SMD

Technical Specifications

Parameters and characteristics for this part

Specification	APGF1011SEEPBVGC-TT

Color	Red, Green, Blue
Configuration	Common Anode
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Height (Max) [Max]	0.25 mm
Lens Color	Colorless
Lens Size	1 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	30 mcd
Millicandela Rating [custom]	23 mcd
Millicandela Rating [custom]	80 mcd
Mounting Type	Surface Mount
Package / Case	0404
Size / Dimension [x]	1 mm
Size / Dimension [y]	1 mm
Supplier Device Package	4-SMD
Viewing Angle [custom]	150 °
Viewing Angle [custom]	130 °
Viewing Angle [custom]	150 °
Voltage - Forward (Vf) (Typ) [custom]	3 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	2.9 V
Wavelength - Dominant	467 nm, 527 nm, 624 nm
Wavelength - Peak [custom]	632 nm
Wavelength - Peak [custom]	518 nm
Wavelength - Peak [custom]	461 nm

Part	Supplier Device Package	Lens Size	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Lens Style	Configuration	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Lens Transparency	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Package / Case	Mounting Type	Height (Max) [Max]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Color
Kingbright APGF1011SEEPBVGC-TT	4-SMD	1 mm	5 mA	5 mA	5 mA	467 nm 527 nm 624 nm	Square with Flat Top	Common Anode	150 °	130 °	150 °	Clear	1 mm	1 mm	Blue Green Red	3 V	2 V	2.9 V	632 nm	518 nm	461 nm	0404	Surface Mount	0.25 mm	30 mcd	23 mcd	80 mcd	Colorless

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

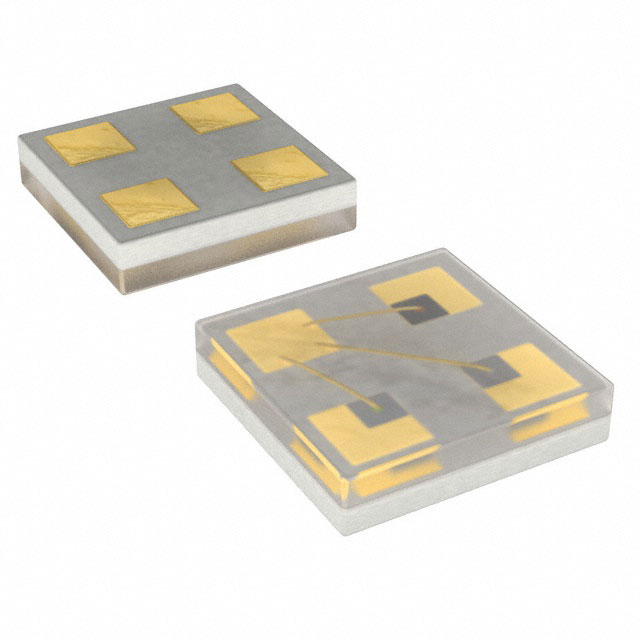

Red, Green, Blue (RGB) 624nm Red, 527nm Green, 467nm Blue LED Indication - Discrete 2V Red, 3V Green, 2.9V Blue 0404 (1010 Metric)
