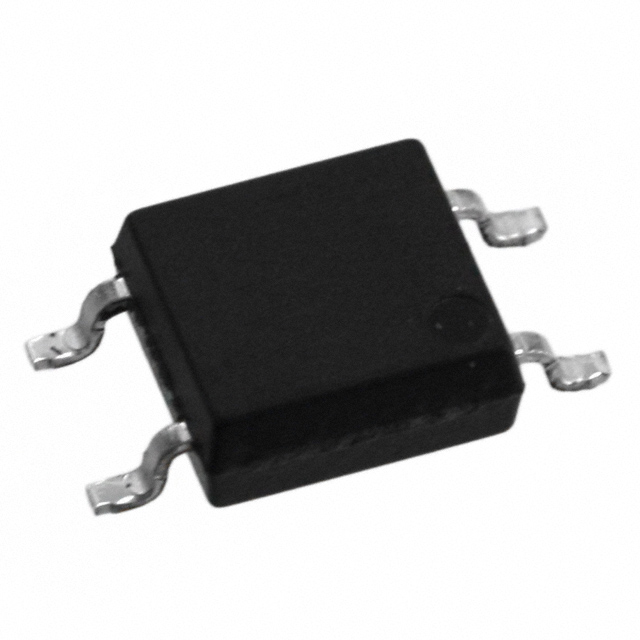

EL357N-G

Active

Everlight Electronics Co Ltd

TRANSISTOR OUTPUT OPTOCOUPLER, 1-ELEMENT, 3750V ISOLATION, SOP-4

Search across all available documentation for this part.

Active

Everlight Electronics Co Ltd

TRANSISTOR OUTPUT OPTOCOUPLER, 1-ELEMENT, 3750V ISOLATION, SOP-4

Technical Specifications

Parameters and characteristics for this part

Specification	EL357N-G

Current - DC Forward (If) (Max)	50 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max) [Max]	600 %
Current Transfer Ratio (Min) [Min]	50 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Vce Saturation (Max)	200 mV
Voltage - Isolation	3750 Vrms

Part	Current - Output / Channel	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Transfer Ratio (Min) [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max)	Current Transfer Ratio (Max) [Max]	Output Type	Package / Case	Vce Saturation (Max)	Voltage - Isolation	Input Type	Number of Channels
Everlight Electronics Co Ltd EL357N(TA)-G	50 mA	-55 °C	110 °C	Surface Mount	50 %	3 µs	4 µs	50 mA	600 %	1.81 mOhm	4-SMD Gull Wing	200 mV	3750 Vrms	DC	1
Everlight Electronics Co Ltd EL357N(TA)-VG	50 mA	-55 °C	110 °C	Surface Mount	50 %	3 µs	4 µs	50 mA	600 %	1.81 mOhm	4-SMD Gull Wing	200 mV	3750 Vrms	DC	1
Everlight Electronics Co Ltd EL357N-G	50 mA	-55 °C	110 °C	Surface Mount	50 %	3 µs	4 µs	50 mA	600 %	1.81 mOhm	4-SMD Gull Wing	200 mV	3750 Vrms	DC	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP (2.54mm)
