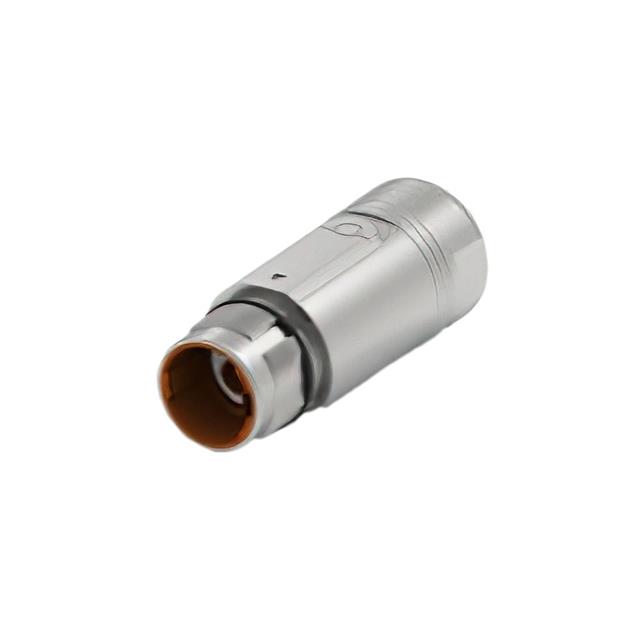

BKA199N00420200000

Active

TE Intercontec

CONN RCP HSG ML 8P INLINE PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BKA199N00420200000

Active

TE Intercontec

CONN RCP HSG ML 8P INLINE PNL MT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BKA199N00420200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Cable Clamp, 1 O-Ring, 1 Connector
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-8
Shielding	Shielded
Type	For Male Pins

BKA19 Series

Part	Shell Size - Insert	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Ingress Protection	Contact Shape	Includes	Connector Type	Type	Shell Material	Material Flammability Rating	Mounting Type	Housing Color	Note	Shell Finish	Shielding	Orientation	Features	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Mounting Feature
TE Intercontec BKA199N00420202000	M23-8	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Push-Twist	IP66/IP67	Circular	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	For Male Pins	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)	Silver	Contacts Not Included	Nickel	Shielded	Keyed	Backshell Cable Clamp	3	8	4	PE
TE Intercontec BKA199N00480200000	M23-8	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Push-Twist	IP66/IP67	Circular	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	For Male Pins	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)	Silver	Contacts Not Included	Nickel	Shielded	Keyed	Backshell Cable Clamp	3	8	4	PE
TE Intercontec BKA199N00480100000	M23-8	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Push-Twist	IP66/IP67	Circular	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	For Male Pins	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)	Silver	Contacts Not Included	Nickel	Shielded	Keyed	Backshell Cable Clamp	3	8	4	PE
TE Intercontec BKA199N00550200000	M23-8	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Push-Twist	IP66/IP67	Circular	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	For Male Pins	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)	Silver	Contacts Not Included	Nickel	Shielded	Keyed	Backshell Cable Clamp	3	8	4	PE
TE Intercontec BKA199N00420100000	M23-8	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Push-Twist	IP66/IP67	Circular	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	For Male Pins	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)	Silver	Contacts Not Included	Nickel	Shielded	Keyed	Backshell Cable Clamp	3	8	4	PE
TE Intercontec BKA199N00420200000	M23-8	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Push-Twist	IP66/IP67	Circular	1 Backshell 1 Cable Clamp 1 Connector 1 O-Ring	Receptacle Housing	For Male Pins	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line) Panel Mount	Silver	Contacts Not Included	Nickel	Shielded	Keyed	Backshell Cable Clamp	3	8	4	PE	Bulkhead - Front Side Nut
TE Intercontec BKA199N00580200000	M23-8	Polyamide (PA66) Nylon 6/6	-20 C	130 °C	Push-Twist	IP66/IP67	Circular	1 Backshell 1 Cable Clamp 1 Connector	Receptacle Housing	For Male Pins	Zinc Die Cast	UL94 V-0	Free Hanging (In-Line)	Silver	Contacts Not Included	Nickel	Shielded	Keyed	Backshell Cable Clamp	3	8	4	PE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 30.38
		10	$ 26.61
		40	$ 24.63
		80	$ 23.81
		280	$ 22.50

Description

General part information

BKA19 Series

8 (4 + 3 Power + PE) Position Circular Connector Receptacle Housing Free Hanging (In-Line); Panel Mount Backshell, Cable Clamp
