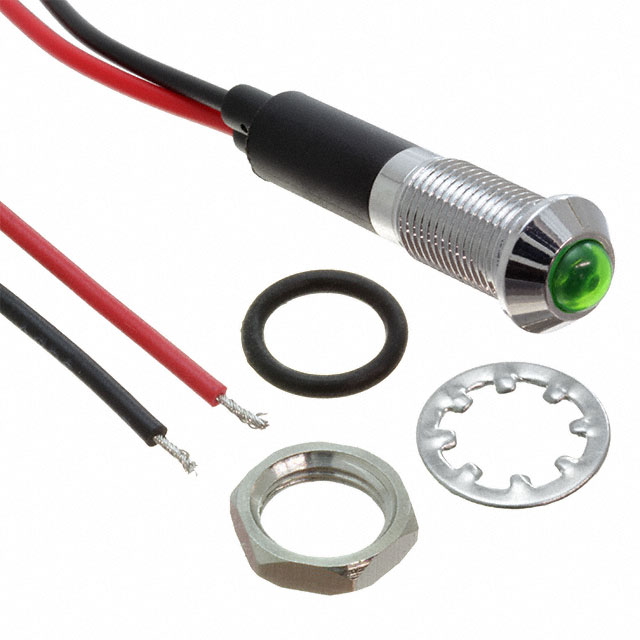

FL1M-8SW-1-G24V

Active

Mallory Sonalert Products Inc.

LED GRN 8MM NUT 24VAC/DC STK

Search across all available documentation for this part.

Active

Mallory Sonalert Products Inc.

LED GRN 8MM NUT 24VAC/DC STK

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating [Max]	Millicandela Rating [Min]	Voltage	Panel Cutout Shape	Viewing Angle	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Ingress Protection	Termination Style	Lens Size	Lens Size	Type	Lens Color	Ratings	Lens Style
Mallory Sonalert Products Inc. FL1M-8FW-1-G12V	10000 mcd	8000 mcd	12 V	Round	150 °	0.31 "	8 mm	Green	IP65	Wire Leads - 7.3" (185.42mm)	T-3 1/8	10 mm	LED	Green	AC/DC
Mallory Sonalert Products Inc. FL1M-8FJ-2-G5V	10000 mcd	8000 mcd	5 V	Round	150 °	0.315 in	8 mm	Green	IP65	PC Pin	T-3 1/8	10 mm	LED	Green	AC/DC
Mallory Sonalert Products Inc. FL1M-8FW-1-G3V	10000 mcd	8000 mcd	3 V	Round	150 °	0.31 "	8 mm	Green	IP65	Wire Leads - 7.3" (185.42mm)	T-3 1/8	10 mm	LED	Green	AC/DC
Mallory Sonalert Products Inc. FL1M-8CJ-3-R2V	1500 mcd	1000 mcd	2 V	Round	35 °	0.31 "	8 mm	Red	IP65	PC Pin			LED	Red	AC/DC	Round with Domed Top
Mallory Sonalert Products Inc. FL1M-8FW-1-B3V	3000 mcd	2000 mcd	3 V	Round	150 °	0.315 in	8 mm	Blue	IP65	Wire Leads	T-3 1/8	10 mm	LED	Blue	AC/DC
Mallory Sonalert Products Inc. FL1M-8CW-4-Y6V	1500 mcd	1000 mcd	6 V	Round	35 °	0.315 in	8 mm	Yellow	IP65	Wire Leads - 7.3" (185.42mm)			LED	Yellow	DC
Mallory Sonalert Products Inc. FL1M-8CW-4-G6V	10000 mcd	8000 mcd	6 V	Round	60 °	0.315 in	8 mm	Green	IP65	Wire Leads - 7.3" (185.42mm)			LED	Green	DC
Mallory Sonalert Products Inc. FL1M-8FJ-2-Y2V	1500 mcd	1000 mcd	2 V	Round	150 °	0.31 "	8 mm	Yellow	IP65	PC Pin	T-3 1/8	10 mm	LED	Yellow	AC/DC
Mallory Sonalert Products Inc. FL1M-8SW-1-G24V	10000 mcd	8000 mcd	24 V	Round	150 °	0.31 "	8 mm	Green	IP65	Wire Leads - 7.3" (185.42mm)			LED	Green	DC	Round with Domed Top

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 150° 24V 20mA Wire Leads - 7.3" (185.42mm)

Technical documentation and resources

No documents available
