1740-6001

Active

Amphenol SV Microwave

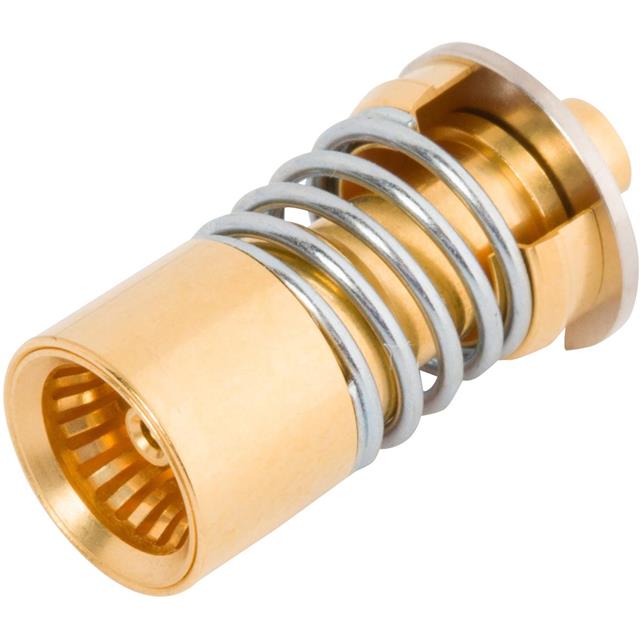

CONN BMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN BMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1740-6001

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Panel Mount, Snap-In
Number of Ports	1
Shield Termination	Solder

Part	Dielectric Material	Cable Group	Cable Group	Shield Termination	Number of Ports	Mounting Type	Impedance	Body Finish	Housing Color	Center Contact Plating	Frequency - Max [Max]	Connector Type	Center Contact Material	Fastening Type	Mating Cycles	Contact Termination	Body Material	Connector Style
Amphenol SV Microwave 1740-6001	Polytetrafluoroethylene (PTFE)	0.085 in	RG-405	Solder	1	Panel Mount Snap-In	50 Ohms	Gold	Gold	Gold	18 GHz	Female Socket Jack	Beryllium Copper	Snap-On	5000	Solder	Stainless Steel	BMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BMA Connector Jack, Female Socket 50 Ohms Panel Mount, Snap-In Solder
