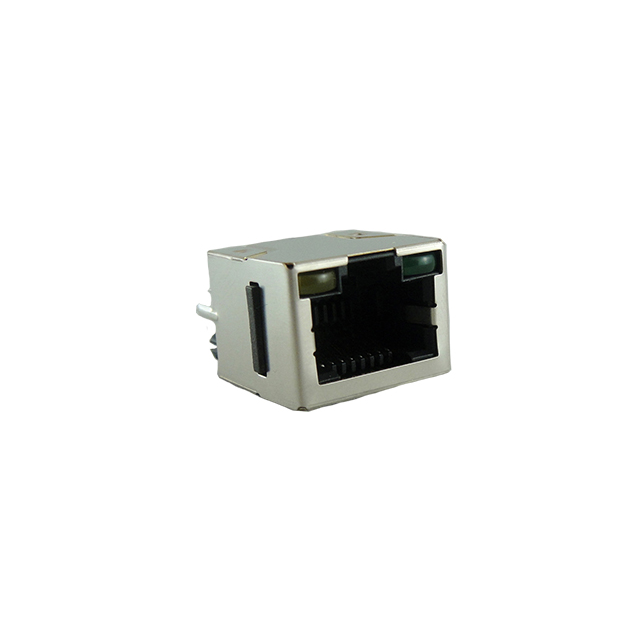

RJHSEN384

Active

Amphenol ICC (Commercial Products)

8P8C, VERTICAL, SHIELD WITH NO E

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

8P8C, VERTICAL, SHIELD WITH NO E

Technical Specifications

Parameters and characteristics for this part

Specification	RJHSEN384

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Vertical
Shielding	Shielded, EMI Finger
Tab Direction	User Selectable
Termination	Solder

Part	Number of Positions/Contacts	Housing Material	Orientation	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Contact Material	Shielding	Number of Ports	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Tab Direction
Amphenol ICC (Commercial Products) RJHSEN384	8p8c (RJ45 Ethernet)	Thermoplastic	Vertical	Gold	85 °C	-55 °C	Green Yellow	Phosphor Bronze	Shielded EMI Finger	1	Jack	1	50 µin	1.27 µm	Solder	Through Hole	User Selectable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Shielded, EMI Finger
