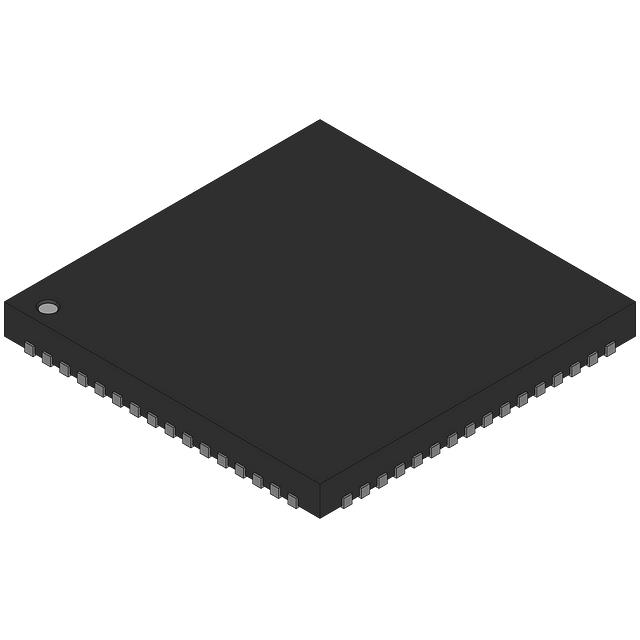

ATXMEGA64B3-MH

Active

Atmel

IC MCU 8/16BIT 64KB FLASH 64QFN

Search across all available documentation for this part.

Active

Atmel

IC MCU 8/16BIT 64KB FLASH 64QFN

Technical Specifications

Parameters and characteristics for this part

Specification	ATXMEGA64B3-MH

Connectivity	USB, UART/USART, SPI, IrDA, I2C
Core Processor	AVR
Core Size	8 Bit, 16 Bit
Data Converters [custom]	12 b
Data Converters [custom]	8
EEPROM Size	2K x 8
Mounting Type	Surface Mount
Number of I/O	36
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	64-VFQFN Exposed Pad
Peripherals	WDT, PWM, LCD, POR, Brown-out Detect/Reset, DMA
Program Memory Size	64 KB
Program Memory Type	FLASH
RAM Size	4K x 8
Speed	32 MHz
Supplier Device Package	64-QFN (9x9)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.6 V

Part	Core Size	Oscillator Type	Number of I/O	EEPROM Size	Package / Case	Mounting Type	Speed	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Program Memory Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Program Memory Size	Core Processor	Data Converters [custom]	Data Converters [custom]	RAM Size
Atmel ATXMEGA64B3-MH	8 Bit 16 Bit	Internal	36	2K x 8	64-VFQFN Exposed Pad	Surface Mount	32 MHz	Brown-out Detect/Reset DMA LCD POR PWM WDT	85 °C	-40 °C	I2C IrDA SPI UART/USART USB	FLASH	1.6 V	3.6 V	64-QFN (9x9)	64 KB	AVR	12 b	8	4K x 8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	49	$ 6.17

General part information

AVR AVR® XMEGA® B3 Microcontroller IC 8/16-Bit 32MHz 64KB (32K x 16) FLASH 64-QFN (9x9)

Technical documentation and resources

No documents available
