031-10-1002

Active

Amphenol RF

CONN BNC JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Frequency - Max [Max]	Shield Termination	Impedance	Insertion Loss	Mating Cycles	Connector Style	Center Contact Material	Includes	Fastening Type	Mounting Feature	Contact Termination	Number of Ports	Housing Color	Center Contact Plating	Body Finish	Body Material	Voltage Rating	Features	Material	Type	Thickness	Thickness	Thread Size	Plating	Width [y]	Width [y]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 031-10-75RFXG2	Female Socket Jack	4 GHz	Solder	75 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector 1 Lockwasher 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver White	Gold	Nickel	Brass	500 V	Isolated
Amphenol RF 031-10495-NA																				Brass	Hex	0.093 in	2.36 mm	3/8"-32	Nickel over Copper	12.57 mm	0.495 in
Amphenol RF 031-105	Female Socket Jack	4 GHz	Solder	50 Ohms	0.2 dB	500	BNC			Bayonet Lock	Flange	Solder Cup	1	Silver	Silver	Nickel	Brass	500 V										Copolymer	-65 ░C	165 °C
Amphenol RF 031-10-1002	Female Socket Jack		Solder	50 Ohms	0.2 dB	500	BNC	Phosphor Bronze	1 Connector 1 Lockwasher 1 Nut	Bayonet Lock	Bulkhead - Rear Side Nut	Solder Cup	1	Silver White	Gold	Nickel	Brass											Polyphenylene Oxide (PPO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

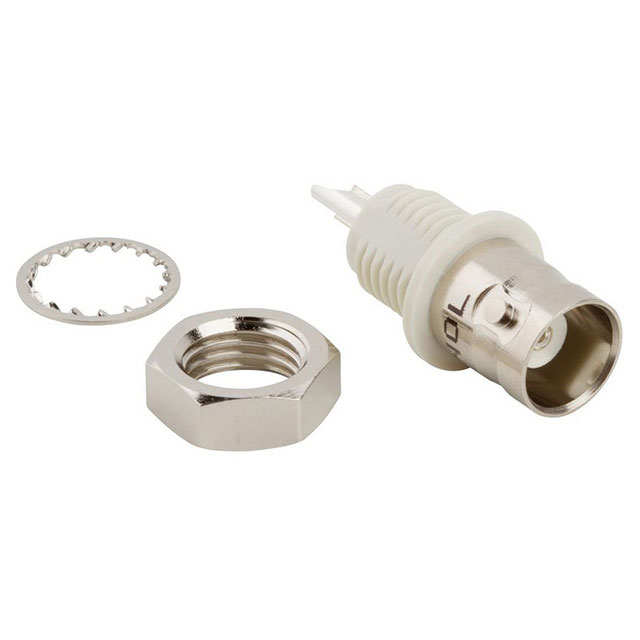

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup

Technical documentation and resources

No documents available
