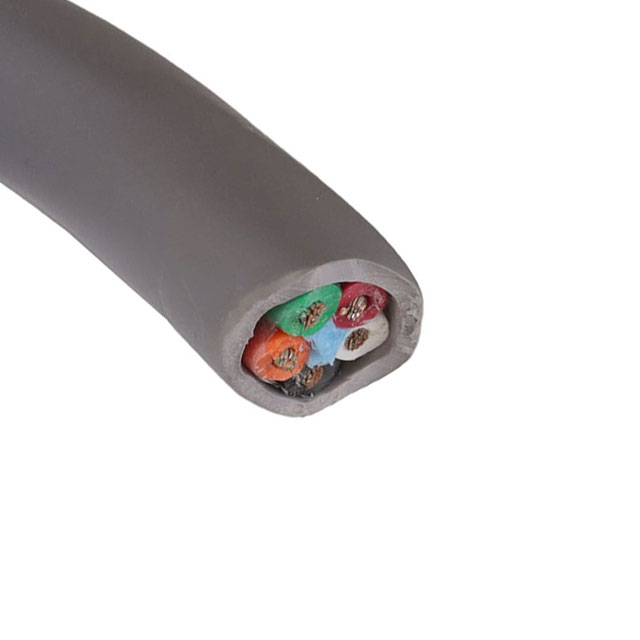

1275 SL002

Active

ALPHA WIRE

CABLE 5COND 14AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 14AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	1275 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [diameter]	0.0147 in
Jacket (Insulation) Diameter [diameter]	14.83 mm
Jacket (Insulation) Diameter [diameter]	0.584 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm
Jacket (Insulation) Thickness	0.063 in
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	600 V
Wire Gauge	13.5 AWG

Part	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Strand [diameter]	Conductor Strand [custom]	Conductor Insulation	Voltage	Length [x]	Length [x]	Wire Gauge	Conductor Material	Usage	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors
ALPHA WIRE 1275 SL002	Slate	-20 C	80 C	1.6 mm	0.063 in	Multi-Conductor	0.0147 in	19 Strands	Poly-Vinyl Chloride (PVC)	600 V	500 '	152.4 m	13.5 AWG	Copper Tinned	Communication Control	Poly-Vinyl Chloride (PVC)	14.83 mm	0.584 in	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.61

General part information

5 Conductor Multi-Conductor Cable Slate 14 AWG 500.0' (152.4m)
