1059684-1

Active

TE Connectivity Aerospace, Defense and Marine

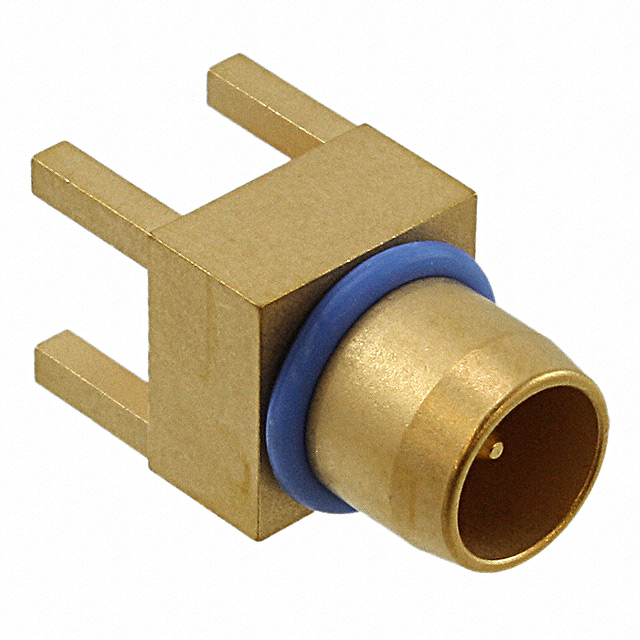

CONN MINI OSP PLUG STR 50OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN MINI OSP PLUG STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1059684-1

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, OSP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Shield Termination	Number of Ports	Contact Termination	Voltage Rating	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Housing Color	Impedance	Fastening Type	Center Contact Material	Connector Style	Connector Type	Center Contact Plating	Body Material	Body Finish	Mating Cycles	Dielectric Material
TE Connectivity Aerospace, Defense and Marine 1059684-1	Solder	1	Solder	500 V	Through Hole	125 °C	-65 ░C	18 GHz	Gold	50 Ohms	Snap-On	Beryllium Copper	Mini OSP	Male Pin Plug	Gold	Stainless Steel	Gold	5000	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

OSP, Mini Connector Plug, Male Pin 50 Ohms Through Hole Solder
