50.112 PA/RSW

Active

Jacob GmbH

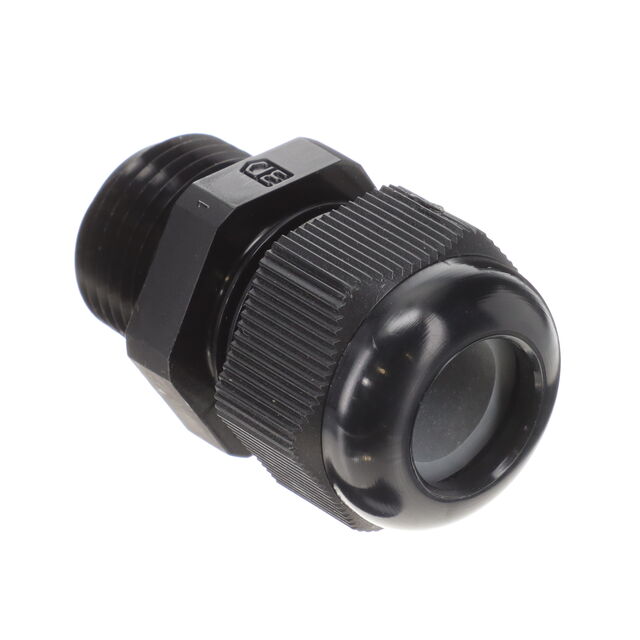

CABLE GLAND 7-12MM 1/2" NPT

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 7-12MM 1/2" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	50.112 PA/RSW

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.472 in
Outside Cable Diameter (Max) [Max] [diameter]	12 mm
Outside Cable Diameter (Min)	7 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.276 in
Thread Length	0.591 in
Thread Length	15 mm
Thread Size	1/2" NPT
Type	Cable Gland

Part	Includes	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Material	Outside Cable Diameter (Min)
Jacob GmbH 50.112 PA/SW	Sealing Ring	1/2" NPT	0.394 in	10 mm	IP68 - Dust Tight Waterproof	0.591 in	15 mm	14 mm	0.551 "	Black	100 °C	-40 °C	Cable Gland
Jacob GmbH 50.112/EMV/R	O-Ring Seal	1/2" NPT			IP68 - Dust Tight Waterproof	0.394 in	10 mm			Silver	100 °C	-40 °C	Cable Gland	0.512 in	13 mm	5 mm	0.197 in	Brass Nickel Plated
Jacob GmbH 50.112PA7035	Sealing Ring	1/2" NPT	0.394 in	10 mm	IP68 - Dust Tight Waterproof	0.591 in	15 mm	14 mm	0.551 "	Gray	100 °C	-40 °C	Cable Gland
Jacob GmbH 50.112 PA/RSW	Sealing Ring	1/2" NPT	0.276 in		IP68 - Dust Tight Waterproof	0.591 in	15 mm			Black	100 °C	-40 °C	Cable Gland	0.472 in	12 mm				7 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 1/2" NPT Black
