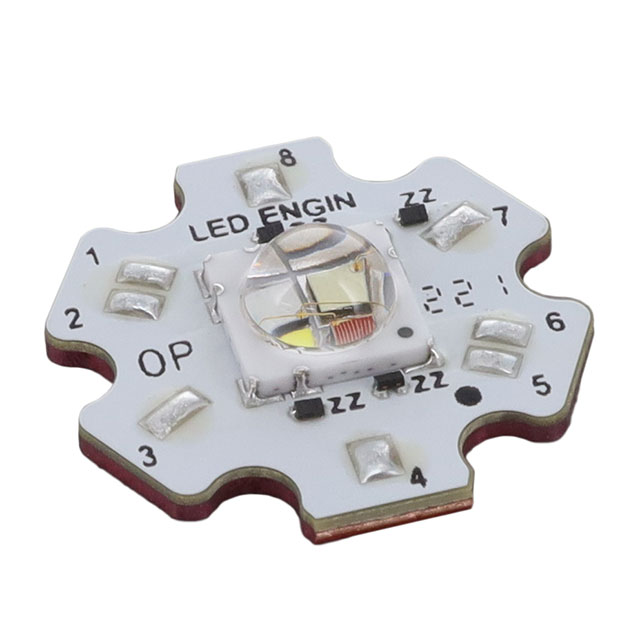

LZ4-60MD09-0000
Obsoleteams-OSRAM USA INC.
LED MOD LZ4 RGBW STARBRD 6173K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LZ4-60MD09-0000
Obsoleteams-OSRAM USA INC.
LED MOD LZ4 RGBW STARBRD 6173K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LZ4-60MD09-0000 |
|---|---|
| CCT (K) | 6173 K |
| Color | Red, Green, Blue, White |
| Configuration | Starboard |
| Current - Max | 1A Blue, 1A Red, 1A Green, 1A White |
| Height [z] | 5.2 mm |
| Lens Type | Domed |
| Light Emitting Surface (LES) [x] | 7 mm |
| Light Emitting Surface (LES) [y] | 7 mm |
| Lumens/Watt @ Current - Test | 85 lm/W |
| Lumens/Watt @ Current - Test [custom] | 13 lm/W |
| Lumens/Watt @ Current - Test [custom] | 66 lm/W |
| Lumens/Watt @ Current - Test [custom] | 63 lm/W |
| Luminous Flux @ Current/Temperature [custom] | 115 lm |
| Luminous Flux @ Current/Temperature [custom] | 30 lm |
| Luminous Flux @ Current/Temperature [custom] | 190 lm |
| Luminous Flux @ Current/Temperature [custom] | 160 lm |
| Size / Dimension [diameter] | 19.9 mm |
| Type | LED Module |
| Viewing Angle | 95 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.5 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.6 V |
| Wavelength | 624nm Red, 457nm Blue, 525nm Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LZ4-60 Series
LED Lighting COBs Engines Modules LED Module LZ4 Red, Green, Blue, White - Cool Starboard
