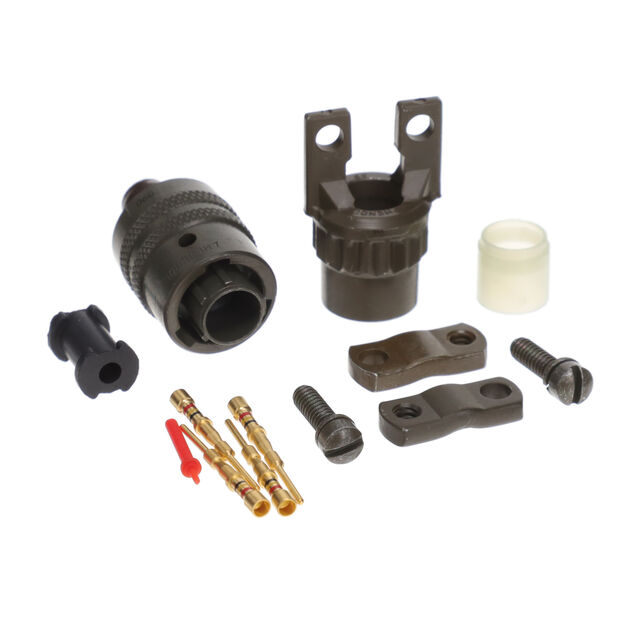

MS3126F8-33P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Search across all available documentation for this part.
MS3126F8-33P
ActiveAmphenol Industrial Operations
MIL-26482 MS/PT/CMB PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MS3126F8-33P |
|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial |
| Cable Opening [custom] | 3.18 mm |
| Cable Opening [custom] | 0.125 in |
| Color | Olive Drab |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief, Coupling Nut |
| Grade | Military |
| Ingress Protection | Environment Resistant |
| Insert Material | Neoprene |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert | 8-33 |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 112.85 | |
| 10 | $ 87.89 | |||
| 25 | $ 80.00 | |||
| 50 | $ 74.68 | |||
| 100 | $ 69.87 | |||
Description
General part information
MS3126F8 Series
3 Position Circular Connector Plug, Male Pins Crimp
