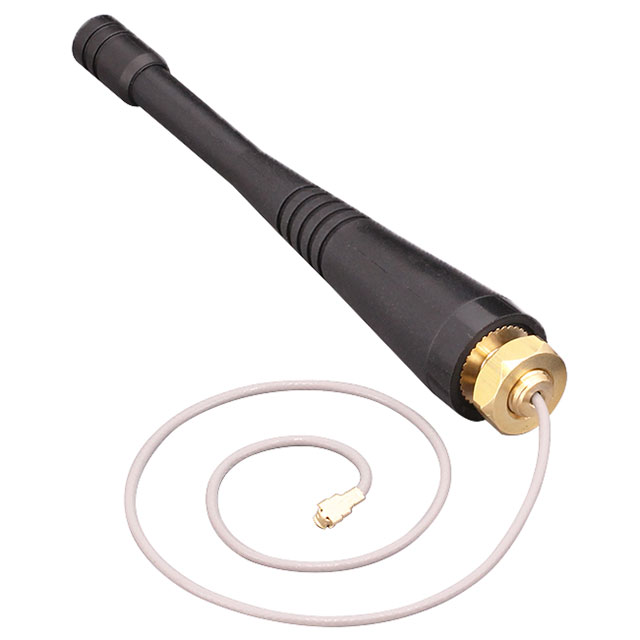

ANT-B20-PW-QW-UFL

Active

TE Connectivity Linx

RF ANT LTE B20 WHIP STR CAB PAN

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT LTE B20 WHIP STR CAB PAN

Technical Specifications

Parameters and characteristics for this part

Part	Frequency Range [Min]	Frequency Range [Max]	Frequency Group [Max]	Frequency Group [Min]	Termination	VSWR	Power - Max [Max]	Frequency (Center/Band)	Antenna Type	RF Family/Standard	Gain	Number of Bands	Applications	Height (Max) [Max]	Height (Max) [Max]	Features	Mounting Type	Features
TE Connectivity Linx ANT-B20-PW-QW	790 MHz	870 MHz	1 GHz	300 MHz	Solder	2.1	10 W	826 MHz	Whip Straight	Cellular	1.6 dBi	1	Cellular GSM LTE NB-IoT UMTS	3.531 in	89.7 mm	216 mm
TE Connectivity Linx ANT-B20-CW-QW-SMA	790 MHz	870 MHz	1 GHz	300 MHz		2.1	10 W	800 MHz 850 MHz	Whip Straight	Cellular	1.6 dBi	1	LTE NB-IoT UMTS	3.531 in	89.7 mm		Connector Mount	O-Ring Compatible
TE Connectivity Linx ANT-B20-PW-QW-UFL	790 MHz	870 MHz	1 GHz	300 MHz			10 W	826 MHz		Cellular	1.6 dBi	1	Cellular GSM LTE NB-IoT UMTS			216 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.74

General part information

RF ANTENNA Cellular, GSM, LTE, NB-IoT, UMTS Whip, Straight Panel Mount

Technical documentation and resources

No documents available
