FISD036RK

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FISD036RK

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	36
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	16.33 mm
Jacket (Insulation) Diameter [diameter]	0.643 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	40.8 kg
Type	Singlemode

Part	Core Diameter [diameter]	Tensile Strength	Cladding Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Style	Type	Ratings
Belden Inc. FISD036PK	9 µm	40.8 kg	125 µm	Yellow	Poly-Vinyl Chloride (PVC)	70 °C	0 °C	36	Rip Cord	15.21 mm	0.599 in	Multiple Fibers	Singlemode	OFNP
Belden Inc. FISD036RK	9 µm	40.8 kg	125 µm	Yellow	Poly-Vinyl Chloride (PVC)	70 °C	-20 C	36	Rip Cord	16.33 mm	0.643 in	Multiple Fibers	Singlemode	OFNR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 2.16

General part information

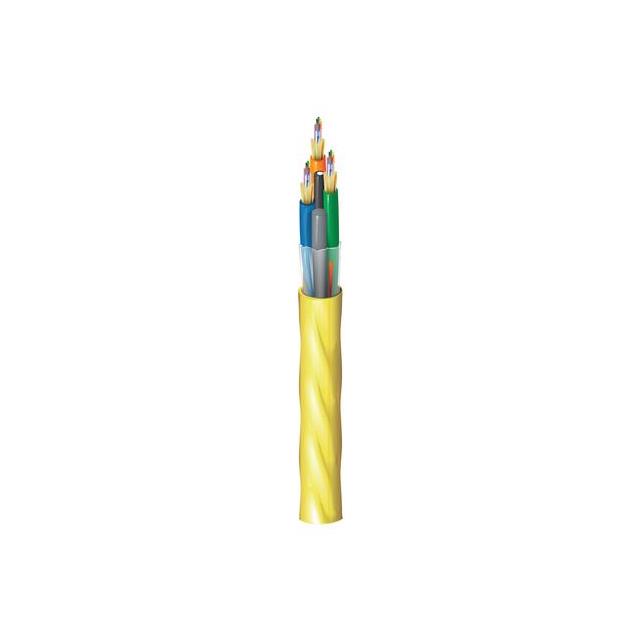

Fiber Optic Cable Yellow Singlemode 125µm

Technical documentation and resources
