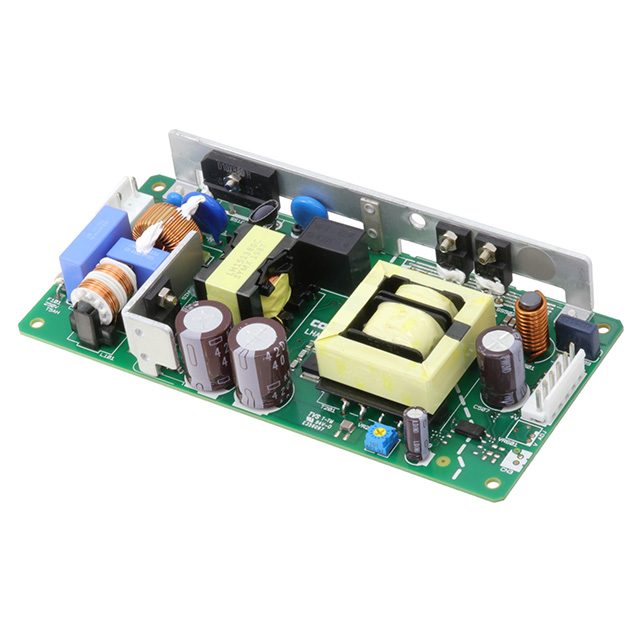

LHA150F-24

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V 151W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V 151W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Power (Watts)	Standard Number	Type	Mounting Type	Features	Current - Output 1	Voltage - Output 1	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Number of Outputs	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]
Cosel USA, Inc. LHA150F-36	92.5 %	151 W	62368-1	Open Frame	Chassis Mount	Universal Input	4.2 A	36 V	3000 V	6.3 "	0.93 in	23.6 mm	160 mm	2.95 in	74.9 mm	ITE (Commercial)	1	CE cURus DEMKO TUV UL	-10 °C	70 °C
Cosel USA, Inc. LHA150F-12		150 W	62368-1	Open Frame	Chassis Mount	Universal Input	12.5 A	12 V	3000 V	6.3 "	0.93 in	23.6 mm	160 mm	2.95 in	74.9 mm	ITE (Commercial)	1	CE cURus DEMKO TUV UL	-10 °C	70 °C
Cosel USA, Inc. LHA150F-24	92 %	151 W	62368-1	Open Frame	Chassis Mount	Universal Input	6.3 A	24 V	3000 V	6.3 "	0.93 in	23.6 mm	160 mm	2.95 in	74.9 mm	ITE (Commercial)	1	CE cURus DEMKO TUV UL	-10 °C	70 °C
Cosel USA, Inc. LHA150F-48	93 %	154 W	62368-1	Open Frame	Chassis Mount	Universal Input	3.2 A	48 V	3000 V	6.3 "	0.93 in	23.6 mm	160 mm	2.95 in	74.9 mm	ITE (Commercial)	1	CE cURus DEMKO TUV UL	-10 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Technical documentation and resources
