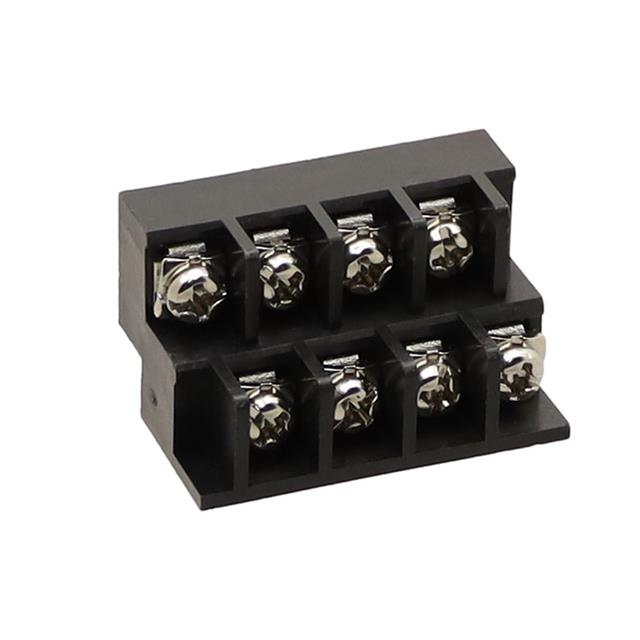

YK66C0803000G

Active

Amphenol Anytek

BARRIER TERMINAL BLOCKS 2X4, 8PO

Search across all available documentation for this part.

Active

Amphenol Anytek

BARRIER TERMINAL BLOCKS 2X4, 8PO

Technical Specifications

Parameters and characteristics for this part

Specification	YK66C0803000G

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Current Rating (Amps)	10 A
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	4
Number of Rows	2
Number of Wire Entries	8
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.3 in
Pitch [x]	7.62 mm
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Bottom Termination	Number of Wire Entries	Pitch [x]	Pitch [x]	Voltage Rating	Terminal Screw Material	Material Flammability Rating	Barrier Type	Terminal Screw Finish	Material - Insulation	Current Rating (Amps)	Top Termination	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits	Mounting Type	Terminal Block Type
Amphenol Anytek YK66C0803000G	2	-40 °C	130 °C	PC Pin	8	0.3 in	7.62 mm	300 VDC	Steel	UL94 V-0	3 Wall (Tri)	Nickel	Polybutylene Terephthalate (PBT)	10 A	Screws with Captive Plate	26 AWG	16 AWG	4	Through Hole	Barrier Block

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Circuit 0.300" (7.62mm) Barrier Block Connector Screws with Captive Plate
