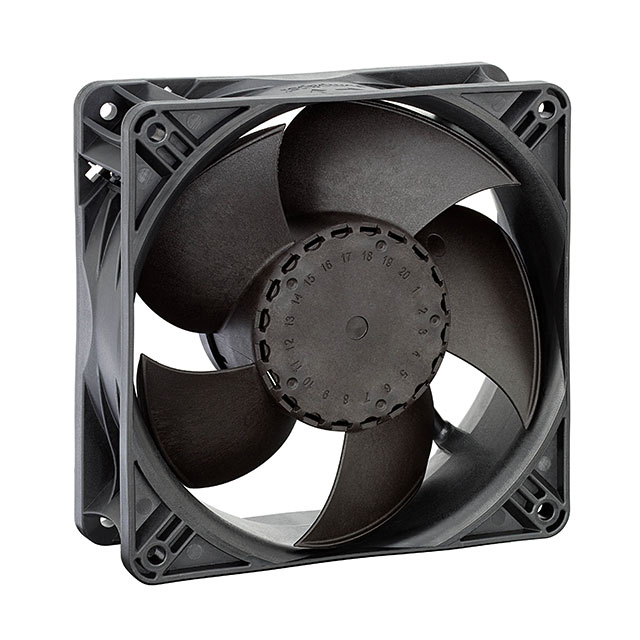

ACI4420N - ACi4400

ACI4420N

Obsolete
ebm-papst Inc.

AC FAN, TUBEAXIAL CONSTRUCTION, 230V, 2.8W,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetCompact Fans for AC, DC, and EC Catalog
ACI4420N - ACi4400

ACI4420N

Obsolete
ebm-papst Inc.

AC FAN, TUBEAXIAL CONSTRUCTION, 230V, 2.8W,

Deep-Dive with AI

DocumentsDatasheetCompact Fans for AC, DC, and EC Catalog

Technical Specifications

Parameters and characteristics for this part

SpecificationACI4420N
Air Flow2.41 m³/min
Air Flow86 CFM
Approval AgencycURus, CSAus
Bearing TypeBall
Fan TypeTubeaxial
FeaturesElectronic Commutation (EC)
Ingress ProtectionIP54 - Dust Protected, Water Resistant
Lifetime @ Temp.65000 Hrs
Material - BladePolyamide (PA), Nylon, Fiberglass Reinforced
Material - FramePolybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise36 dB
Operating Temperature [Max]75 ░C
Operating Temperature [Max]75 °C
Operating Temperature [Min]-20 C
Operating Temperature [Min]-20 °C
Power (Watts)2.8 W
RPM2700 RPM
Size / Dimension [x]119.5 mm
Size / Dimension [z]119.5 mm
Termination2 Terminals
Voltage - Rated230 VAC
Voltage Range [Max]265 VAC
Voltage Range [Min]195 VAC
Weight0.551 lb
Weight249.93 g
Width [y]38 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

ACI4420 Series

Fan Tubeaxial 230VAC Square - 119.5mm L x 119.5mm H Ball 86.0 CFM (2.41m³/min) 2 Terminals
