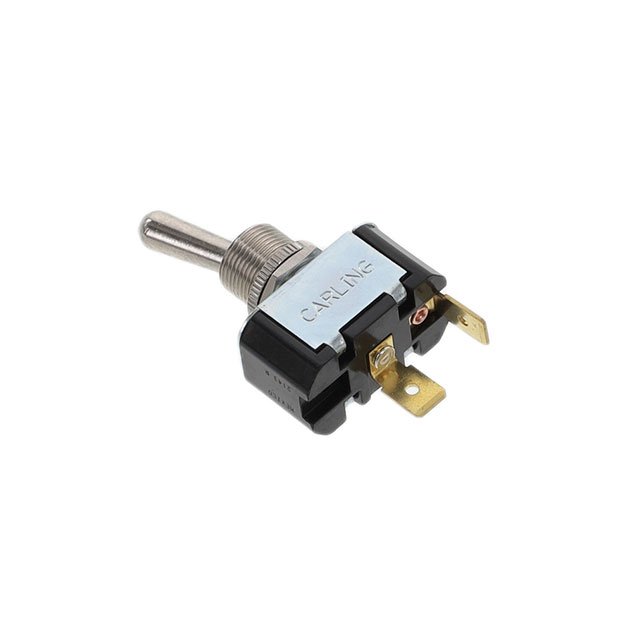

2FAA01-73

Active

Carling Technologies

SWITCH TOGGLE SPST 20A 125V

Search across all available documentation for this part.

Active

Carling Technologies

SWITCH TOGGLE SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	2FAA01-73

Actuator Length [x]	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPST
Current Rating (Amps)	20 A
Electrical Life	50000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	65.6 °C
Operating Temperature [Min]	-17.8 °C
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Switch Function	Bushing Thread	Actuator Type	Electrical Life	Circuit	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Termination Style	Actuator Length [x]	Current Rating (Amps)	Voltage Rating - AC
Carling Technologies 2FAA01-63	On-Off	15/32-32	Standard Round	50000 Cycles	SPST	Non-Illuminated	65.6 °C	-17.8 °C	12.7 mm	Wire Leads	14.28 mm
Carling Technologies 2FAA01-73/NO HDW
Carling Technologies 2FAA01-73/END TABS
Carling Technologies 2FAA01-63/NO HDW	On-Off	15/32-32	Standard Round	50000 Cycles	SPST	Non-Illuminated	65.6 °C	-17.8 °C	12.7 mm	Wire Leads	14.28 mm
Carling Technologies 2FAA01-73	On-Off	15/32-32	Standard Round	50000 Cycles	SPST	Non-Illuminated	65.6 °C	-17.8 °C	12.7 mm	Quick Connect - 0.250" (6.3mm)	17.45 mm	20 A	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPST Panel Mount
