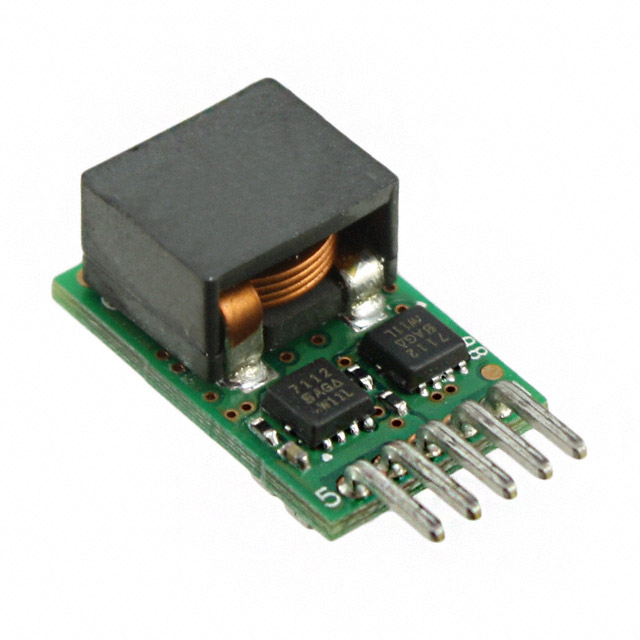

NE12S0A0V06PNFA
ObsoleteDelta Electronics
DC DC CONVERTER 0.6-5.1V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NE12S0A0V06PNFA
ObsoleteDelta Electronics
DC DC CONVERTER 0.6-5.1V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NE12S0A0V06PNFA |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 6 A |
| Efficiency | 94.5 % |
| Features | Remote On/Off, OCP, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 113 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 0.41 " |
| Size / Dimension [x] | 10.4 mm |
| Size / Dimension [y] | 11 mm |
| Size / Dimension [y] | 0.43 in |
| Size / Dimension [z] | 16.5 mm |
| Size / Dimension [z] | 0.65 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.8 V |
| Voltage - Input (Min) [Min] | 3.1 V |
| Voltage - Output 1 [Max] | 5.1 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.81 | |
| 5 | $ 8.31 | |||
Description
General part information
NE12S0 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.1V 6A 3.1V - 13.8V Input
