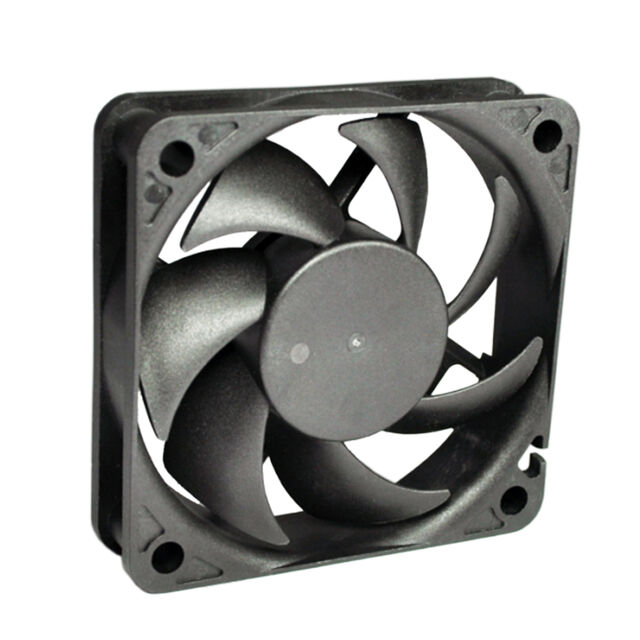

EYW06015024BH-5

Active

YS TECH USA

FAN AXIAL 60X15MM 24VDC WIRE

Search across all available documentation for this part.

Active

YS TECH USA

FAN AXIAL 60X15MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	EYW06015024BH-5

Air Flow	20.9 CFM
Air Flow	0.585 m³/min
Bearing Type	Ball
Current Rating (Amps)	0.055 A
Fan Type	Tubeaxial
Lifetime @ Temp.	75000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	33 dB(A)
Power (Watts)	1.32 W
RPM	4800 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.154 in H2O
Static Pressure	38.4 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	12 VDC
Width [x]	15 mm

Part	Voltage - Rated	Termination	Material - Blade	Size / Dimension [x]	Size / Dimension [y]	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Width [x]	RPM	Air Flow	Air Flow	Noise	Bearing Type	Lifetime @ Temp.	Static Pressure	Static Pressure	Power (Watts)	Current Rating (Amps)
YS TECH USA EYW06015024BS-5	24 VDC	2 Wire Leads	Polybutylene Terephthalate (PBT)	60 mm	60 mm	26.4 VDC	12 VDC	Tubeaxial	15 mm
YS TECH USA EYW06015024BH-5	24 VDC	3 Wire Leads	Polybutylene Terephthalate (PBT)	60 mm	60 mm	26.4 VDC	12 VDC	Tubeaxial	15 mm	4800 RPM	20.9 CFM	0.585 m³/min	33 dB(A)	Ball	75000 Hrs	0.154 in H2O	38.4 Pa	1.32 W	0.055 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 20.9 CFM (0.585m³/min) 3 Wire Leads
