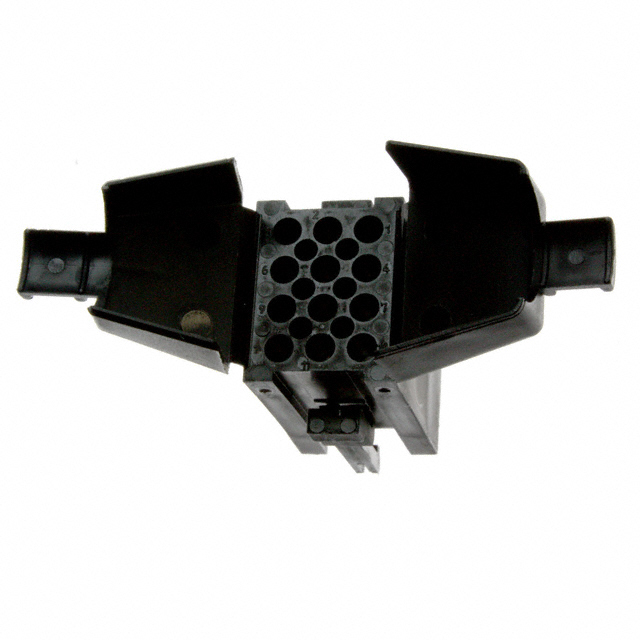

SMS12PDH1
ActiveSouriau-Sunbank by Eaton
CONN PLUG HSG 12POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
SMS12PDH1
ActiveSouriau-Sunbank by Eaton
CONN PLUG HSG 12POS 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS12PDH1 |
|---|---|
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Latch Lock |
| Features | Strain Relief |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Row Spacing | 5.08 mm |
| Row Spacing | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 6.90 | |
| 10 | $ 5.28 | |||
| 25 | $ 4.77 | |||
| 50 | $ 4.42 | |||
| 100 | $ 4.10 | |||
| 250 | $ 3.72 | |||
| 500 | $ 3.47 | |||
| 1000 | $ 3.24 | |||
| 2500 | $ 2.97 | |||
Description
General part information
SMS12P Series
12 Rectangular Connectors - Housings Plug 0.200" (5.08mm)
Documents
Technical documentation and resources
No documents available
