1317C SL001
ActiveALPHA WIRE
MULTI-PAIR 4COND 22AWG SLATE 25'
Deep-Dive with AI
Search across all available documentation for this part.
1317C SL001
ActiveALPHA WIRE
MULTI-PAIR 4COND 22AWG SLATE 25'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1317C SL001 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 5.87 mm |
| Jacket (Insulation) Diameter [diameter] | 0.231 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate |
| Length [x] | 30.5 m, 152.4 m, 7.62 m |
| Length [x] | 100 ft, 500 ', 25 ft |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 71.98 | |
| 1 | $ 20.46 | |||
| 1 | $ 298.47 | |||
| 2 | $ 280.91 | |||
| 2 | $ 19.27 | |||
| 3 | $ 66.57 | |||
| 5 | $ 18.24 | |||
| 5 | $ 63.19 | |||
| 5 | $ 261.76 | |||
| 10 | $ 247.39 | |||
| 10 | $ 16.87 | |||
| 10 | $ 59.47 | |||
| 25 | $ 234.62 | |||
| 25 | $ 16.01 | |||
| 25 | $ 55.42 | |||
| 50 | $ 207.49 | |||
| 50 | $ 15.07 | |||
| 50 | $ 52.38 | |||
| 100 | $ 14.04 | |||
| 100 | $ 49.67 | |||
Description
General part information
1317C Series

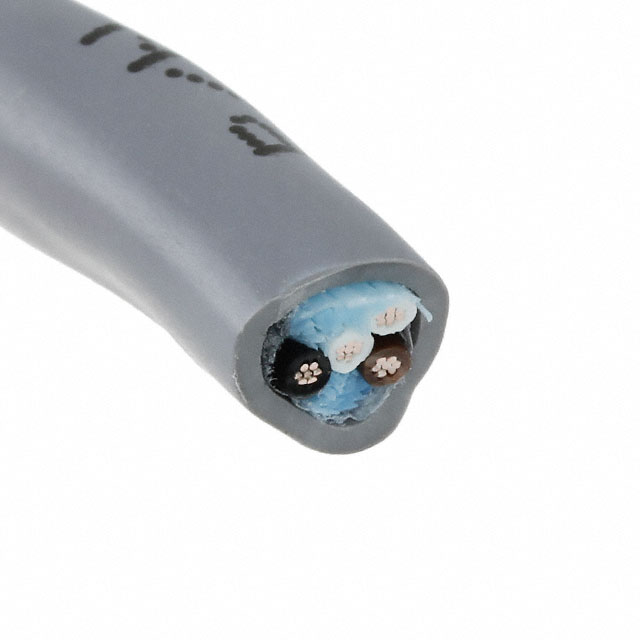

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 25.00' (7.62m)
