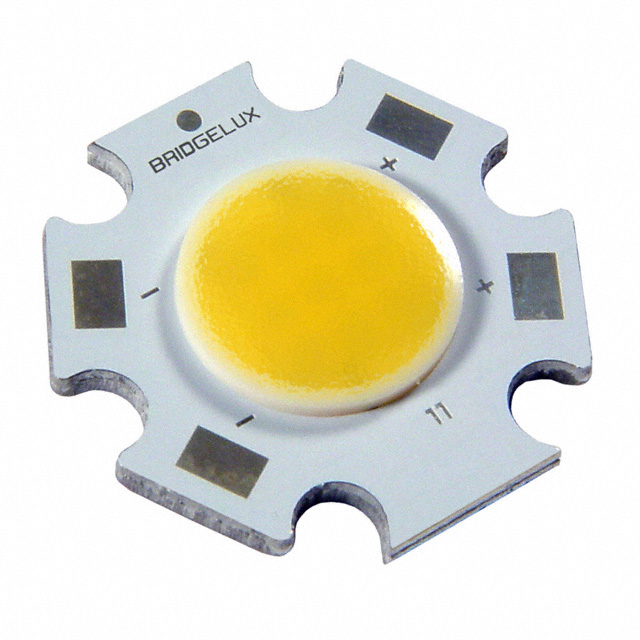

BXRA-N0402-00L00

Obsolete

BRIDGELUX

LED COB ES WH STARBRD 4100K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB ES WH STARBRD 4100K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-N0402-00L00

CCT (K)	4100 K
Color	Neutral, White
Configuration	Starboard
CRI (Color Rendering Index)	80
Current - Max [Max]	1.5 A
Current - Test	600 mA
Height [z]	3.5 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	82 lm/W
Luminous Flux @ Current/Temperature	440 lm
Size / Dimension [x]	20.04 mm
Size / Dimension [y]	20.04 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	8.9 V

Part	Color	Height [z]	Viewing Angle	Current - Max [Max]	Configuration	Luminous Flux @ Current/Temperature	Current - Test	Type	Voltage - Forward (Vf) (Typ)	Lens Type	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [x]	Size / Dimension [y]
BRIDGELUX BXRA-N0402-00L00	Neutral White	3.5 mm	120 °	1.5 A	Starboard	440 lm	600 mA	Chip On Board (COB)	8.9 V	Domed	82 lm/W	80	4100 K	20.04 mm	20.04 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) ES STAR White, Neutral Starboard
