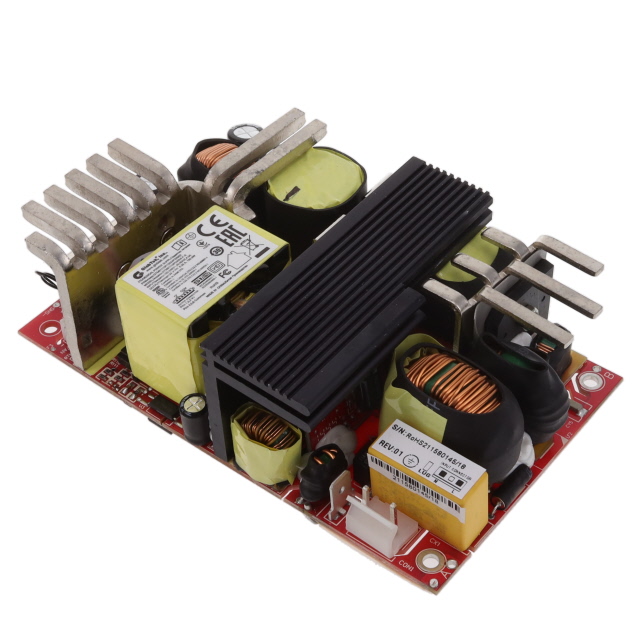

GTM91110P15024FSIM(R

Active

GlobTek, Inc.

AC/DC CONVERTER 24V 150W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC CONVERTER 24V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	GTM91110P15024FSIM(R

Applications	ITE (Commercial), Medical
Approval Agency	EAC, VCCI, FCC, CE, UKRSepro, CB, cETLus, SIQ
Current - Output 1	6.25 A
Efficiency	90 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	150 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.69 in
Size / Dimension [z]	43 mm
Standard Number	60601-1-11, 60950-1, 60601-1-2
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Power (Watts)	Voltage - Isolation	Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Standard Number	Voltage - Output 1	Number of Outputs	Type	Mounting Type	Applications	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]
GlobTek, Inc. GTM91110P24024CAS(R)	50 °C	-10 °C	8.33 A	200 W	4000 V	Universal Input	51.9 mm	3.45 "	87.6 mm	140 mm	5.51 "	2.04 in	90 %	60601-1-11 60601-1-2 60950-1	24 V	1	Enclosed	Chassis Mount	ITE (Commercial) Medical	CB CE cETLus FCC GOST-R SIQ UKRSepro VCCI	90 VAC	264 VAC
GlobTek, Inc. GTM91110P15024FSIM(R	50 °C	-10 °C	6.25 A	150 W	4000 V	Universal Input	43 mm	3 "	76.2 mm	127 mm	5 in	1.69 in	90 %	60601-1-11 60601-1-2 60950-1	24 V	1	Open Frame	Chassis Mount	ITE (Commercial) Medical	CB CE cETLus EAC FCC SIQ UKRSepro VCCI	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
