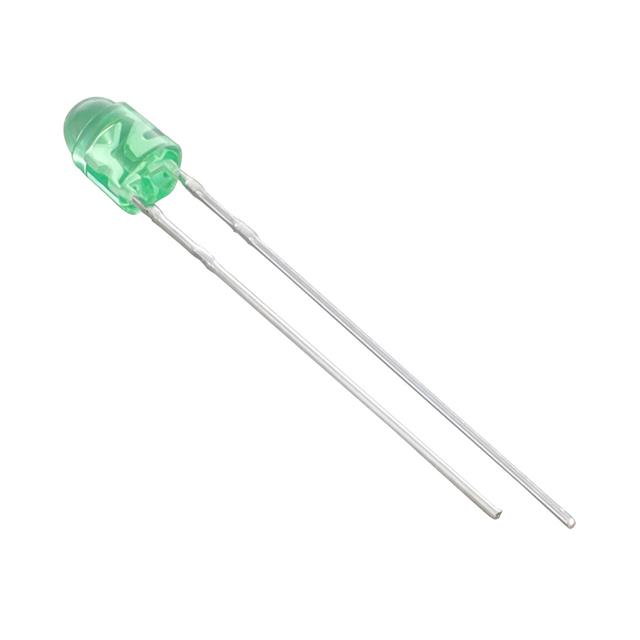

SLR-343PC3F

Obsolete

Rohm Semiconductor

LED UNI-COLOR GREEN 555NM 2-PIN T-1 BULK

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

LED UNI-COLOR GREEN 555NM 2-PIN T-1 BULK

Technical Specifications

Parameters and characteristics for this part

Circular LED lamp

Part	Lens Size [diameter]	Color	Current - Test	Lens Transparency	Voltage - Forward (Vf) (Typ)	Package / Case	Viewing Angle [custom]	Height (Max) [Max] [z]	Millicandela Rating	Wavelength - Dominant	Lens Color	Mounting Type	Lens Style	Configuration	Wavelength - Peak
Rohm Semiconductor SLR-343PCT32	3.1 mm	Green	10 mA	Clear	2.1 V	Radial	40 °	5.6 mm	6.3 mcd	560 nm	Green	Through Hole	Round with Domed Top	Standard
Rohm Semiconductor SLR-343YC3F	3.1 mm	Yellow	10 mA	Clear	2.1 V	Radial	40 °	5.6 mm	16 mcd		Yellow	Through Hole	Round with Domed Top	Standard	585 nm
Rohm Semiconductor SLR-343YY3F	3.1 mm	Yellow	10 mA	Diffused	2.1 V	Radial	40 °	5.6 mm	10 mcd	587 nm	Yellow	Through Hole	Round with Domed Top	Standard
Rohm Semiconductor SLR-343PC3F	3.1 mm	Green	10 mA	Clear	2.1 V	Radial	40 °	5.6 mm	6.3 mcd	560 nm	Green	Through Hole	Round with Domed Top	Standard
Rohm Semiconductor SLR-343DU3F	3.1 mm		10 mA	Diffused	2 V	Radial	40 °		16 mcd	605 nm	Orange	Through Hole	Round with Domed Top	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROHM's lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.
