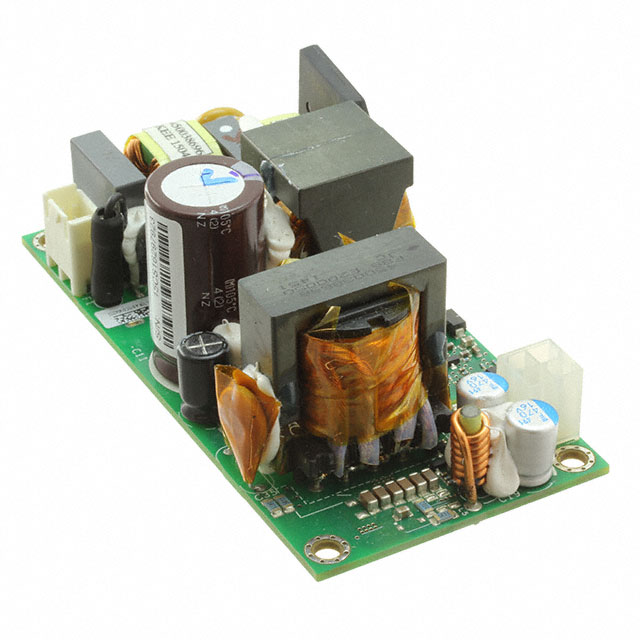

CLP0112FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
Search across all available documentation for this part.
CLP0112FPXXXZ01A
ActiveOmniOn Power™
AC/DC CONVERTER 12V 150W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CLP0112FPXXXZ01A |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 12.5 A |
| Efficiency | 92.7 % |
| Features | Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 150 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 1.3 " |
| Size / Dimension [z] | 33 mm |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 75.08 | |
Description
General part information
CLP0112 Series
Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
