H2181-01
ActiveHarwin Inc.

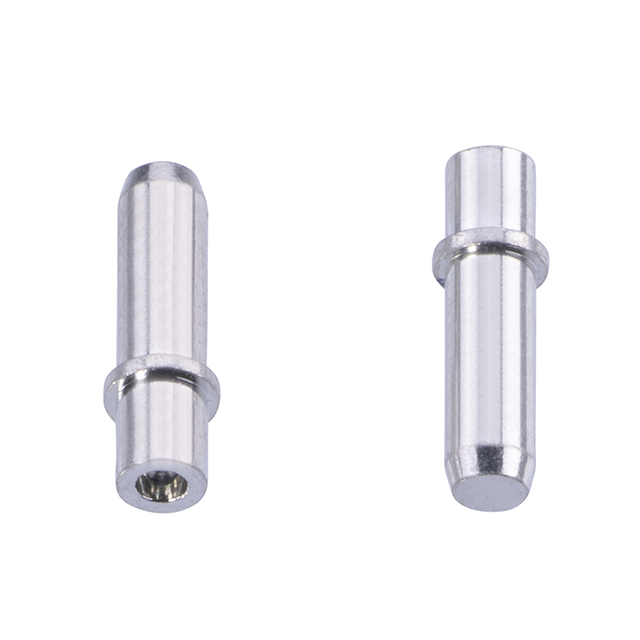

CONN PC PIN 1.75MM DIA TIN 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2181-01
ActiveHarwin Inc.
CONN PC PIN 1.75MM DIA TIN 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2181-01 |
|---|---|
| Board Thickness | 1.6 mm |
| Board Thickness | 0.063 in |
| Contact Finish | Tin |
| Contact Material | Brass |
| Flange Diameter [diameter] | 0.089 in |
| Flange Diameter [diameter] | 2.25 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 5 mm |
| Length - Above Flange [x] | 0.197 in |
| Length - Below Flange [x] | 1.95 mm |
| Length - Below Flange [x] | 0.077 in |
| Length - Overall [x] | 0.289 in |
| Length - Overall [x] | 7.35 mm |
| Mounting Hole Diameter [Max] [diameter] | 1.9 mm |
| Mounting Hole Diameter [Max] [diameter] | 0.075 " |
| Mounting Hole Diameter [Min] [diameter] | 1.8 mm |
| Mounting Hole Diameter [Min] [diameter] | 0.071 " |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.78 mm |
| Pin Size - Above Flange [diameter] | 0.07 in |
| Pin Size - Below Flange [diameter] | 1.78 mm |
| Pin Size - Below Flange [diameter] | 0.07 " |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.35 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.28 | |||
| 50 | $ 0.26 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
Description
General part information
H2181 Series
PC Pin Terminal Connector Through Hole Tin 0.070" (1.78mm) Dia
