90206-AS

Active

PRECI-DIP SA

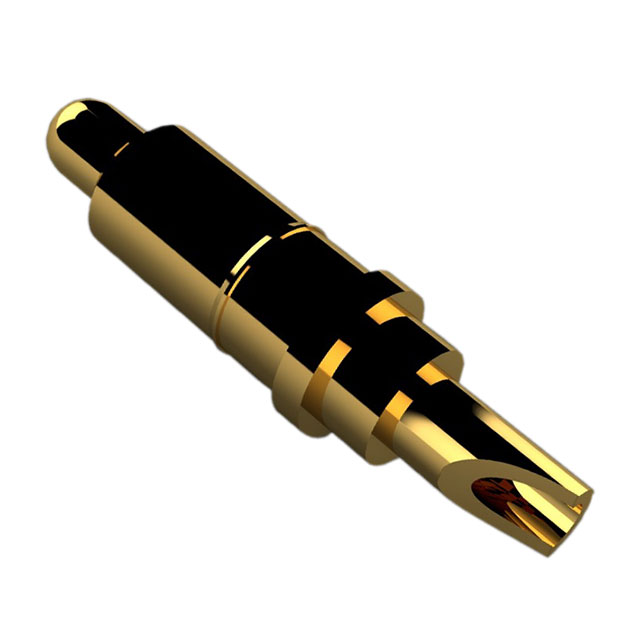

CONTACT SPRING LOADED SLDR CUP

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONTACT SPRING LOADED SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	90206-AS

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	6 mm
Maximum Working Height [Max]	0.236 in
Minimum Working Height [Min]	0.181 in
Minimum Working Height [Min]	4.6 mm
Mounting Type	Solder Cup, Through Hole
Operating Force - Initial	25.49 gf
Operating Force - Mid Compression	86.68 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	0.061 in
Pad Layout Dimension [diameter]	1.55 mm
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

Part	Plunger Size [diameter]	Plunger Size [diameter]	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Operating Force - Mid Compression	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Mounting Type	Contact Type	Operating Force - Initial	Maximum Working Height [Max]	Maximum Working Height [Max]	Contact Material	Minimum Working Height [Min]	Minimum Working Height [Min]
PRECI-DIP SA 90206-AS	0.042 in	1.07 mm	0.061 in	1.55 mm	0.51 µm	20 µin	Gold	86.68 gf	3 A	-55 °C	125 °C	40000	Solder Cup Through Hole	Sleeve & Plunger (Pogo Pins)	25.49 gf	6 mm	0.236 in	Brass Alloy	0.181 in	4.6 mm
