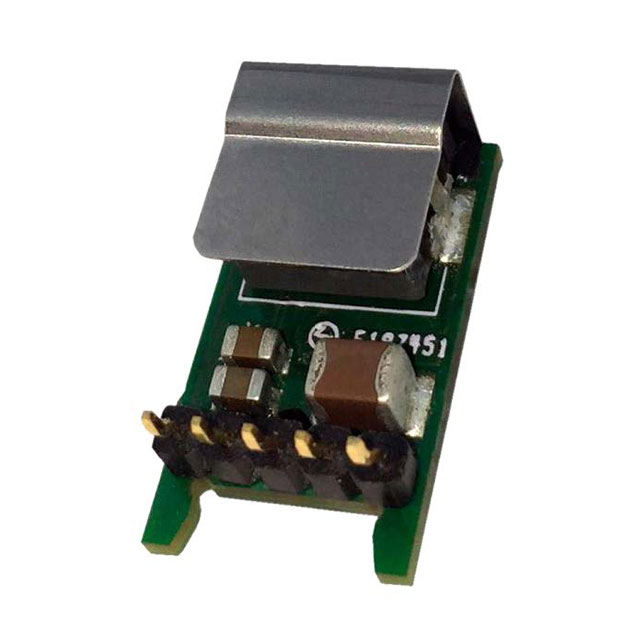

SRPE-03E1A0G
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.6-5.5V 17W
Deep-Dive with AI
Search across all available documentation for this part.
SRPE-03E1A0G
ActiveEOS Power India Private Ltd
DC DC CONVERTER 0.6-5.5V 17W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRPE-03E1A0G |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 92 % |
| Features | UVLO, Remote On/Off, SCP, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Package / Case | 5-SMD Module |
| Power (Watts) | 17 W |
| Size / Dimension [x] | 0.41 " |
| Size / Dimension [x] | 10.4 mm |
| Size / Dimension [y] | 0.34 in |
| Size / Dimension [y] | 8.6 mm |
| Size / Dimension [z] | 0.65 in |
| Size / Dimension [z] | 16.5 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 5.5 V |
| Voltage - Output 1 [Max] | 5.5 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 12.50 | |
| 5 | $ 12.40 | |||
| 10 | $ 12.31 | |||
| 25 | $ 12.12 | |||
| 40 | $ 11.74 | |||
| 80 | $ 10.61 | |||
| 360 | $ 10.42 | |||
| 720 | $ 10.23 | |||
Description
General part information
SRPE-03 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 3A 5.5V - 13.2V Input
Documents
Technical documentation and resources
No documents available
