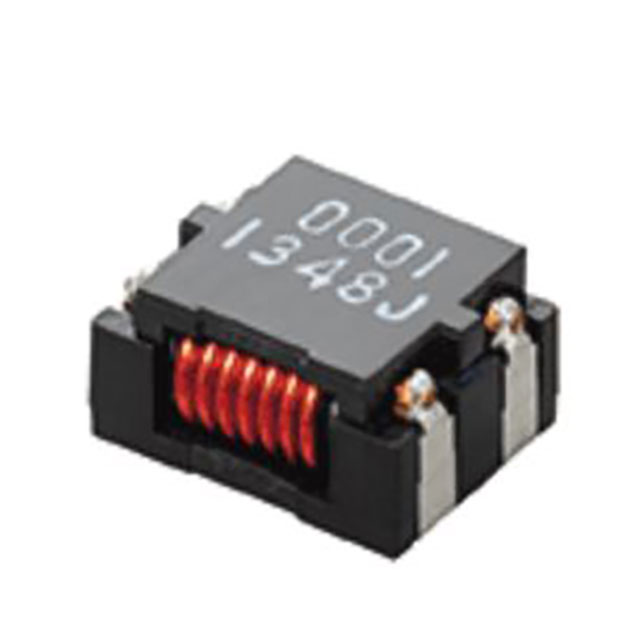

1259CM-0001=P3
ActiveMurata Power Solutions Inc.
CMC 5A 2LN 700 OHM SMD AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1259CM-0001=P3
ActiveMurata Power Solutions Inc.
CMC 5A 2LN 700 OHM SMD AEC-Q200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1259CM-0001=P3 |
|---|---|
| Current Rating (Max) [Max] | 5 A |
| DC Resistance (DCR) (Max) [Max] | 10 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 5 mm |
| Height (Max) [Max] | 0.197 in |
| Impedance @ Frequency | 700 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4 Lead |
| Package / Case | Horizontal |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 9 mm |
| Size / Dimension [x] | 0.354 " |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [y] | 0.276 in |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.79 | |
| 10 | $ 1.52 | |||
| 25 | $ 1.40 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.05 | |||
| 250 | $ 1.02 | |||
| Digi-Reel® | 1 | $ 1.79 | ||
| 10 | $ 1.52 | |||
| 25 | $ 1.40 | |||
| 50 | $ 1.25 | |||
| 100 | $ 1.05 | |||
| 250 | $ 1.02 | |||
| Tape & Reel (TR) | 750 | $ 0.93 | ||
| 1500 | $ 0.90 | |||
| 3750 | $ 0.87 | |||
| 5250 | $ 0.84 | |||
Description
General part information
1259CM Series
2 Line Common Mode Choke Surface Mount 700 Ohms @ 100 MHz 5A DCR 10mOhm
Documents
Technical documentation and resources
