1415190

Active

Phoenix Contact

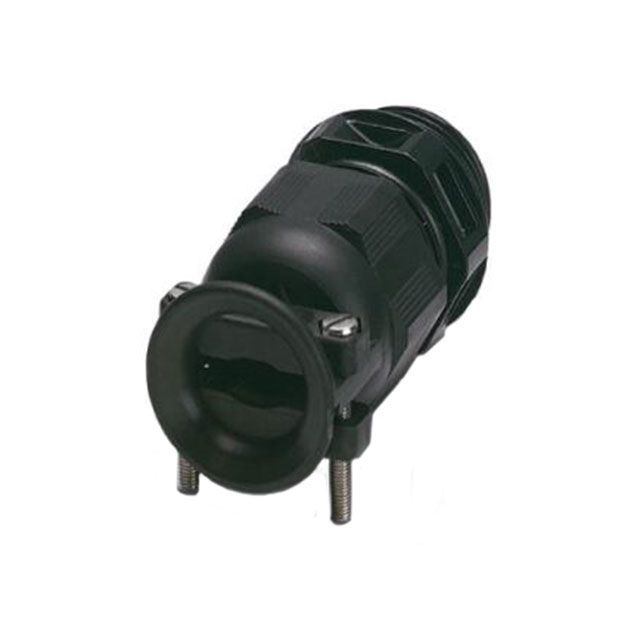

CABLE GLAND 9-16.99MM M25

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 9-16.99MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	1415190

Color	Black
Includes	Seal
Ingress Protection	IP68/IP69 - Dust Tight, Water Resistant, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	16.99 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.669 in
Outside Cable Diameter (Min) [Min] [diameter]	9 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.354 in
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	M25
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Type	Includes	Thread Length	Thread Length	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Thread Size	Color
Phoenix Contact 1415190	9 mm	0.354 in	16.99 mm	0.669 in	Polyamide (PA) Nylon	Cable Gland	Seal	10 mm	0.394 in	100 °C	-40 °C	IP68/IP69 - Dust Tight Water Resistant Waterproof	M25	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 4.33

General part information

Cable Gland Polyamide (PA), Nylon M25 Black
