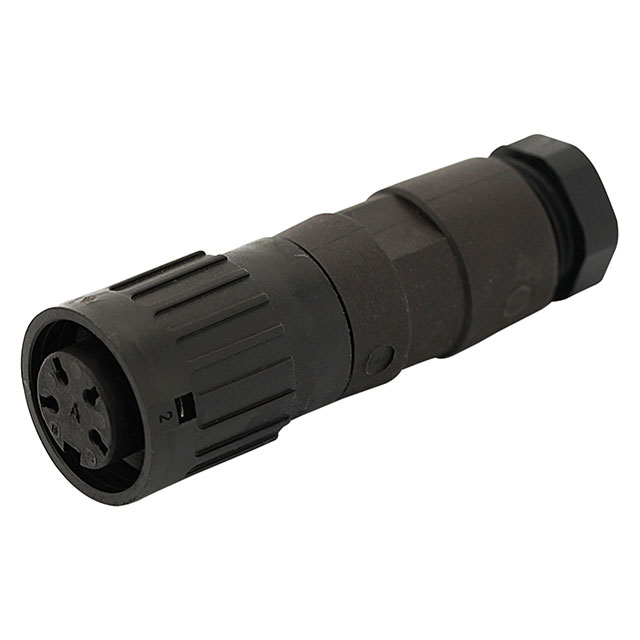

T 3325 552

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3325 552

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Plastic
Shell Size - Insert	M16-4
Shielding	Unshielded
Type	For Female Sockets

Part	Voltage Rating	Shell Size - Insert	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Orientation	Primary Material	Current Rating (Amps)	Fastening Type	Features	Number of Positions	Ingress Protection	Connector Type	Contact Finish - Mating	Contact Shape	Contact Size	Type	Contact Type	Insert Material	Note	Housing Color	Shielding	Material Flammability Rating	Shell Finish	Color
Amphenol Tuchel Industrial T 3325 501	250 VDC	M16-4	Free Hanging (In-Line)	100 °C	-40 °C	Plastic	Keyed	Plastic	10 A	Bayonet Lock	Strain Relief	4	IP40	Female Sockets Plug	Silver
Amphenol Tuchel Industrial T 3325 551		M16-4	Free Hanging (In-Line)	100 °C	-40 °C	Plastic	Keyed			Bayonet Lock	Cable Clamp Coupling Nut Strain Relief	4	IP40	Plug Housing		Circular	1.5 mm	For Female Sockets	Crimp	Thermoplastic	Contacts Not Included	Black	Unshielded	UL94 V-0
Amphenol Tuchel Industrial T 3325 005	250 VDC	M16-4	Free Hanging (In-Line) Right Angle	100 °C	-40 °C	Die Cast	Keyed	Metal	10 A	Bayonet Lock	Strain Relief	4	IP40	Female Sockets Plug	Silver										Nickel	Silver
Amphenol Tuchel Industrial T 3325 552		M16-4	Free Hanging (In-Line)	100 °C	-40 °C	Plastic	Keyed			Bayonet Lock	Backshell Cable Clamp Coupling Nut	4	IP40	Plug Housing		Circular	1.5 mm	For Female Sockets	Crimp	Thermoplastic	Contacts Not Included	Black	Unshielded	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.03

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
