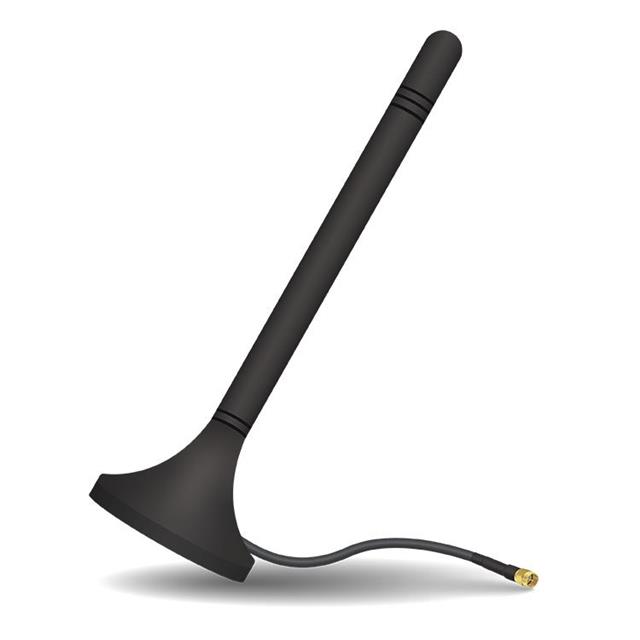

X9001248-4GMSMB1000R
ActiveKyocera AVX
ANTENNA,LTE MAGNETIC 1000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
X9001248-4GMSMB1000R
ActiveKyocera AVX
ANTENNA,LTE MAGNETIC 1000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | X9001248-4GMSMB1000R |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | Sigfox, LTE, LoRa |
| Frequency (Center/Band) | 2.6 GHz, 700 MHz, 800 MHz, 1.8 GHz, 900 MHz, 2.1 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 2.69 GHz, 960 MHz |
| Frequency Range [Min] | 1.71 GHz, 698 MHz |
| Gain | -5 dBi, 1.8 dBi, -2 dBi, 1.9 dBi |
| Height (Max) [Max] | 112 mm |
| Height (Max) [Max] | 4.409 in |
| Ingress Protection | IP65 |
| Mounting Type | Magnetic |
| Number of Bands | 6 |
| Return Loss | -5.2 dB, -5.8 dB, -6 dB |
| RF Family/Standard | 802.15.4, Cellular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.14 | |
| 10 | $ 5.58 | |||
| 25 | $ 4.92 | |||
| 100 | $ 4.18 | |||
| 300 | $ 3.76 | |||
| 500 | $ 3.60 | |||
| 1000 | $ 3.42 | |||
| 2500 | $ 3.22 | |||
Description
General part information
X9001248 Series
RF ANTENNA LTE, LoRa, Sigfox Whip, Straight SMA Male Magnetic
