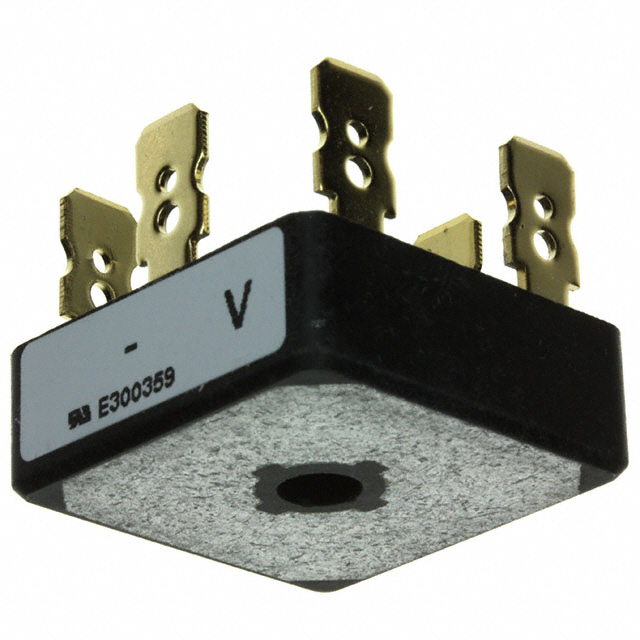

VS-26MT140

Active

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 3P 1.4KV 25A D-63

Search across all available documentation for this part.

Active

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 3P 1.4KV 25A D-63

Technical Specifications

Parameters and characteristics for this part

Specification	VS-26MT140

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	100 µA
Diode Type	Three Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	5-Square, D-63
Supplier Device Package	D-63
Technology	Standard
Voltage - Peak Reverse (Max) [Max]	1.4 kV

Part	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Mounting Type	Current - Reverse Leakage @ Vr	Diode Type	Technology	Current - Average Rectified (Io)
Vishay General Semiconductor - Diodes Division VS-26MT140	5-Square D-63	-55 °C	150 °C	1.4 kV	D-63	QC Terminal	100 µA	Three Phase	Standard	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 1.4 kV QC Terminal D-63
