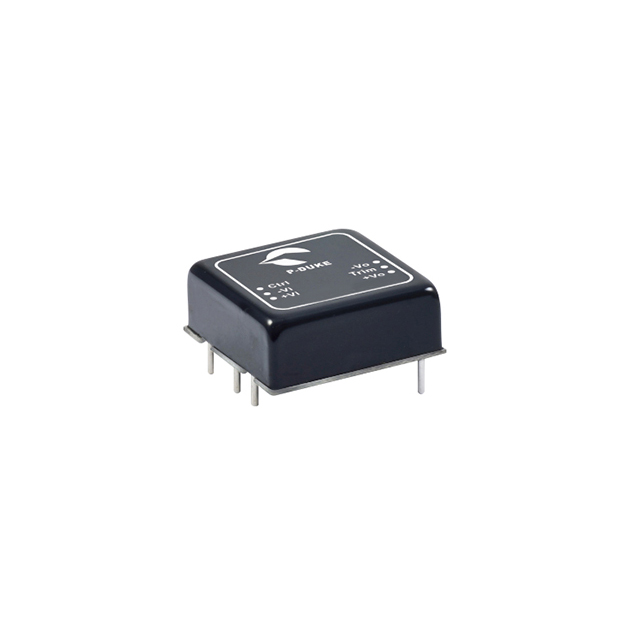

RCD15-24D12W
ActiveP-DUKE Technology
DC DC CONVERTER +/-12V 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RCD15-24D12W
ActiveP-DUKE Technology
DC DC CONVERTER +/-12V 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RCD15-24D12W |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Control Features | Active Low, Enable |
| Current - Output (Max) | 625 mA |
| Current - Output (Max) | 625 mA |
| Efficiency | 90 % |
| Features | Standby Output, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.39 in |
| Size / Dimension [z] | 9.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 54.75 | |
| 10 | $ 48.12 | |||
| 30 | $ 45.25 | |||
| 50 | $ 43.97 | |||
| 100 | $ 42.29 | |||
Description
General part information
RCD15 Series
Isolated Module DC DC Converter 2 Output 12V -12V 625mA, 625mA 9V - 36V Input
