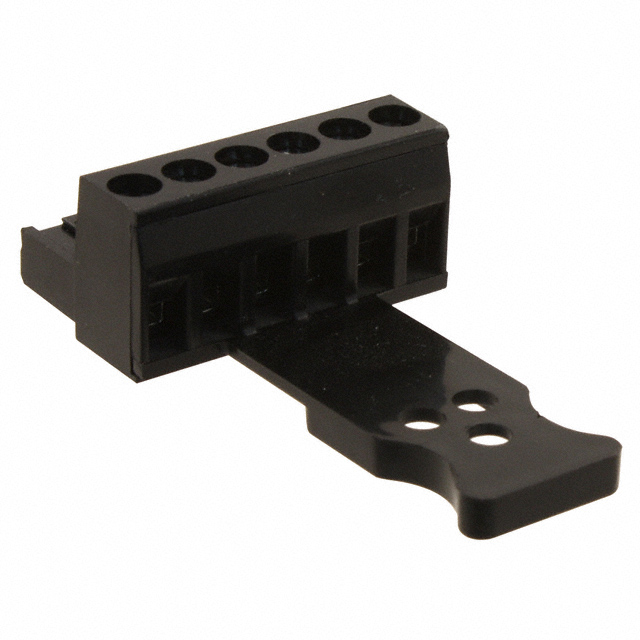

ELFP0621P0

Active

AMPHENOL PCD

TERM BLOCK PLUG 6POS STR 5.08MM

Search across all available documentation for this part.

Active

AMPHENOL PCD

TERM BLOCK PLUG 6POS STR 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	ELFP0621P0

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin-Lead
Features	Strain Relief, Retention Latches (Non-Wire Side)
Housing Material	Polyphenylene Oxide (PPO)
Insulation Height	16.8 mm
Insulation Height	0.661 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	6
Operating Temperature	105 C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	6
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm
Torque - Screw	7 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG	12 AWG
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	14 AWG

Part	Color	Features	Voltage - UL	Insulation Height	Insulation Height	Termination Style	Type	Operating Temperature	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG	Wire Gauge or Range - AWG [Min]	Housing Material	Mounting Type	Torque - Screw	Torque - Screw	Number of Positions	Positions Per Level	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Material	Contact Mating Finish	Number of Levels
AMPHENOL PCD ELFP06210E
AMPHENOL PCD ELFP0621P0	Black	Retention Latches (Non-Wire Side) Strain Relief	300 V	16.8 mm	0.661 in	Screw - Rising Cage Clamp	Plug Female Sockets	105 C	26 AWG	12 AWG	14 AWG	Polyphenylene Oxide (PPO)	Free Hanging (In-Line)	0.79 Nm	7 Lb-In	6	6	0.2 in	5.08 mm	UL94 V-0	Copper Alloy	Tin-Lead	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
