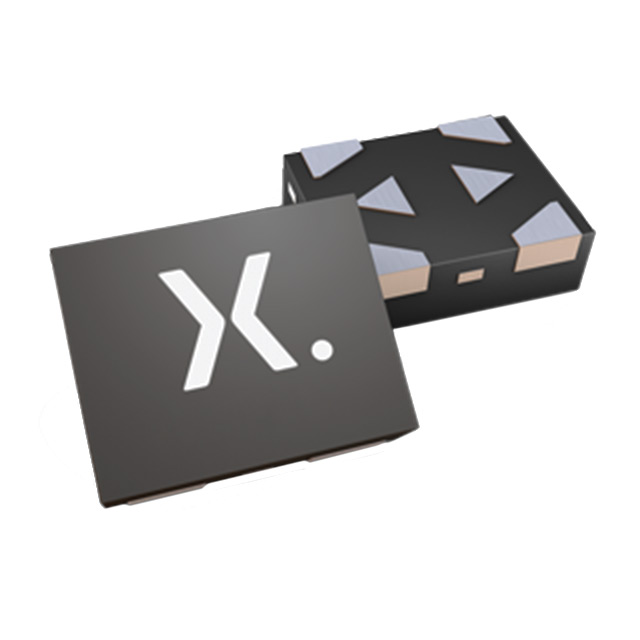

74AVC1T45GXZ

Active

Freescale Semiconductor - NXP

74AVC1T45GX/SOT1255/X2SON6

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

74AVC1T45GX/SOT1255/X2SON6

Technical Specifications

Parameters and characteristics for this part

Part	Number of Circuits	Channels per Circuit	Voltage - VCCA [Min]	Voltage - VCCA [Max]	Supplier Device Package	Translator Type	Voltage - VCCB [Max]	Voltage - VCCB [Min]	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Data Rate	Channel Type	Mounting Type	Package / Case	Qualification	Grade	Supplier Device Package [y]	Supplier Device Package [x]
Freescale Semiconductor - NXP 74AVC1T45GM,115	1	1	0.8 V	3.6 V	6-XSON SOT886 (1.45x1)	Voltage Level	3.6 V	0.8 V	Non-Inverted Tri-State	-40 °C	125 °C	500 Mbps	Bidirectional	Surface Mount	6-XFDFN
Freescale Semiconductor - NXP 74AVC1T45GM-Q100H	1	1	0.8 V	3.6 V	6-XSON SOT1202 (1x1)	Voltage Level	3.6 V	0.8 V	Non-Inverted Tri-State	-40 °C	125 °C	500 Mbps	Bidirectional	Surface Mount	6-XFDFN	AEC-Q100	Automotive
Freescale Semiconductor - NXP 74AVC1T45GS,132	1	1	0.8 V	3.6 V	6-XSON SOT1202 (1x1)	Voltage Level	3.6 V	0.8 V	Non-Inverted Tri-State	-40 °C	125 °C	500 Mbps	Bidirectional	Surface Mount	6-XFDFN
Freescale Semiconductor - NXP 74AVC1T45GM,132	1	1	0.8 V	3.6 V	6-XSON SOT886 (1.45x1)	Voltage Level	3.6 V	0.8 V	Non-Inverted Tri-State	-40 °C	125 °C	500 Mbps	Bidirectional	Surface Mount	6-XFDFN
Freescale Semiconductor - NXP 74AVC1T45GXZ	1	1	0.8 V	3.6 V	6-X2SON	Voltage Level	3.6 V	0.8 V	Tri-State	-40 °C	125 °C	500 Mbps	Bidirectional	Surface Mount	6-XFDFN			0.8	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Voltage Level Translator Bidirectional 1 Circuit 1 Channel 500Mbps 6-X2SON (1.0x0.8)
