RUMF32F7

Active

SQUARE D BY SCHNEIDER ELECTRIC

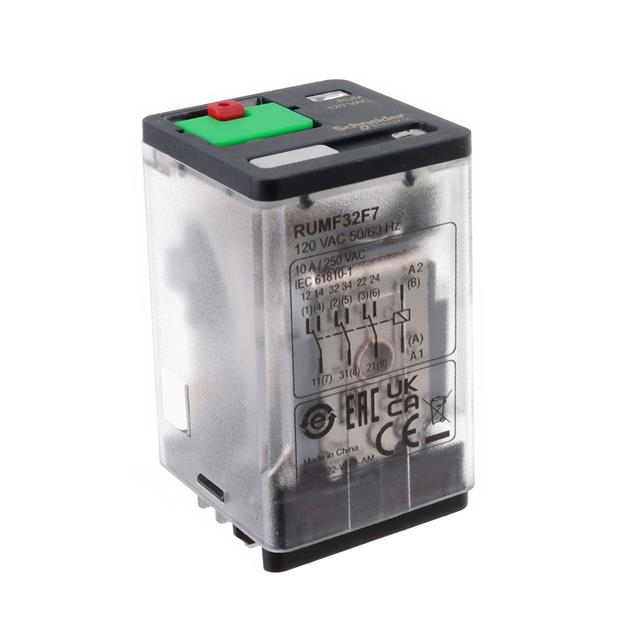

RELAY 3CO QC PIN 10A@250V 120VAC

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 3CO QC PIN 10A@250V 120VAC

Technical Specifications

Parameters and characteristics for this part

Specification	RUMF32F7

Approval Agency	CSA, UL, EAC
Coil Current	70.6 mA
Coil Resistance	1.7 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Features	Test Button, Lighted Indicator
Load - Max Switching	2500 VA, 280 W
Mounting Type	Socketable
Must Operate Voltage	96 VAC
Must Release Voltage	18 VAC
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage	250 VAC, 28 VDC
Termination Style	Plug In

Part	Switching Voltage	Features	Must Release Voltage	Contact Form	Release Time	Coil Type	Coil Resistance	Contact Rating (Current)	Approval Agency	Must Operate Voltage	Relay Type	Contact Material	Coil Current	Load - Max Switching	Coil Voltage	Termination Style	Operate Time	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
SQUARE D BY SCHNEIDER ELECTRIC RUMF32JD	28 VDC 250 VAC	Lighted Indicator Test Button	1.2 VDC	3PDT (3 Form C)	20 ms	Non Latching	120 Ohms	10 A	CSA EAC UL	9.6 VDC	General Purpose	Silver Nickel (AgNi)	100 mA	280 W 2500 VA	12 VDC	Plug In	20 ms	Socketable	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RUMF32B7	28 VDC 250 VAC	Lighted Indicator Test Button	3.6 VAC	3PDT (3 Form C)	20 ms	Non Latching	72 Ohms	10 A	CSA EAC UL	19.2 VAC	General Purpose	Silver Nickel (AgNi)	333.3 mA	280 W 2500 VA	24 VAC	Plug In	20 ms	Socketable	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RUMF32BD	28 VDC 250 VAC	Lighted Indicator Test Button	2.4 VDC	3PDT (3 Form C)	20 ms	Non Latching	470 Ohms	10 A	CSA EAC UL	19.2 VDC	General Purpose	Silver Nickel (AgNi)	51.1 mA	280 W 2500 VA	24 VDC	Plug In	20 ms	Chassis Mount	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC RUMF32F7	28 VDC 250 VAC	Lighted Indicator Test Button	18 VAC	3PDT (3 Form C)	20 ms	Non Latching	1.7 kOhms	10 A	CSA EAC UL	96 VAC	General Purpose	Silver Nickel (AgNi)	70.6 mA	280 W 2500 VA	120 VAC	Plug In	20 ms	Socketable	-40 °C	55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay 3PDT (3 Form C) 120VAC Coil Socketable
